Z Purlin Roll Forming Machine Steel Structure C-Z Interchangeable Machine

C / Z100-300 Purlin Fast Interchangeable Machine

Descrition:

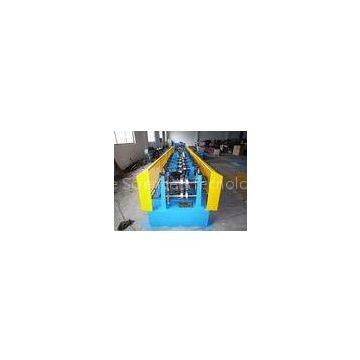

C-Z interchangeable machine adopts a special structure. The rollers for C & Z are changed very quickly without dismantle anything.parts. One machine can produce all specifications of C & Z purlins. Crimples are optional to increase rigidity of purlin.

Main technical data:

?1. Main dimension: 11000 x 1800 x 1800mm

?2. Total weight: 14000kg

?3. Hydraulic pressure: 15-20Mpa

?3 leveling and coif feeding motor:4kw

?4 Steps of rollers:

4.1 Feeding & guiding: two sets

4.2 Leveling: one set, seven rolls

4.3 Punching : 2sets

4.4 Pre-cut: 1set

4.5 Main forming: 20 steps

4.6 Rectifying: one step

5. width automatic adjustment is controlled by PLC (Panasonic PLC )

6. Purlin specifications:

6.1 For C purlin:? width:100-300mm height:40mm—100mm(adjust automatical)

6.2 For Z purlin: width :10-300mm? height:40mm—100mm(adjust automatical)

7. Material of rollers: GCr15, 40Cr, quenched

Flowchart:

Applications:

It is used in the field of steel structure.

profile drawing:

Competitive Advantage:

1. We have experienced engineer who engaged in designing the roll forming machines for 10 years

2. We have complete after-sales service system and we guanratee all life of the machines maintaince .

3. We can gurantee in-time delivery and well-done packaging
