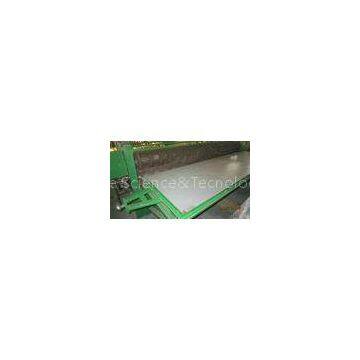

Barrel Type Corrugation Machine For Galvanized Steel Roof Panel Forming

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HRF		Place of Origin	China
Model Number	HRF18-76.2

Delivery Time:75 days
Certification:CE

Barrel Type Corrugation Machie

Descrition:

No 1: The barrel type corrugation machine is only used to roll thin sheet from 0.15mm to 0.4mm and max length can be 14 feet( 4267mm)

No 2: The material width can be 762mm(2.5feet),914mm(3 feet),1000mm and 1250mm

No 3: The material can be pre-painted steel,galvanized steel,galvalume and pre-painted galvanlume etc ,(G350Mpa to G550Mpa)

No 4: Finished product width:665mm for 762mm input

??????????????????????????? ? ? ? ? ? ? ? ? 800mm for 914mm input

?????????????????????????? ? ? ? ? ? ? ? ?? 875mm for 1000mm input????????????????????????????

???????????????????? ?????? ? ? ? ? ? ? ? ? Pitch width:76.2mm(2mm)

??????????????????????????????????????????? Depth:18mm(1.5mm)

No 5: The uppper and bottom rolls for corrugation can be adjustable

No 6: We exported to this type machine to some South Eastern countries like Indonesia,Sri Lanka,Philippines ect

Applications:

Roofing panel

Wall panel

Warehouse roofs

Profile drawing:

Specifications:

1	Material thickness	mm	0.15-0.4mm Full hard,G350Mpa--G350Mpa
2	Forming speed	R/min	12
3	Roll station		2 sets
4	Main power	kw	11kw AC motor
5	Coil width input		762mm,914mm,,1000mm.1250mm
6	Control system	/	PLC panasonic/omron/simens/mitsubishi
7	Power supply		380v,50Hz,3ph
8	Drive	/	Chain drive
