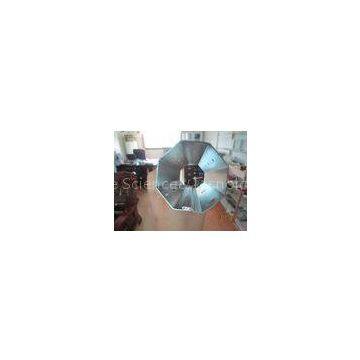

Colored Steel Sheet Octagonal Pipe Forming Machine , Sheet Metal Roll Former
- T/T L/C D/P D/A
- 7 days
You May Like
-
Automatic Chain Drive Pipe Forming Machine 6 Inch Half Round Forming Line
-
PLC Control Square Pipe Forming Machine 16 Roll Stations Single Chain Drive
-
5.5Kw Gutter Roll Forming Machine , Cold Roll Forming Equipment 380V 50Hz
-
Automatic Pipe Roll Forming Machine 0.3mm - 0.8mm Colored Steel Sheet
-
Full Auto 80 * 100 Sewer Pipe Roll Forming Machine With Manual Decoiler
-
Hydraulic Aluminum Tube / Pipe Forming Machine 90 Max Bend Angle
Product Details
| Brand Name | HRF | Place of Origin | China | |
| Model Number | HRF60 |
Product Description
Certification:CE
Description:
1) The rolled suitable raw material is 0.6---1.2mm colored steel sheet or galvanized steel(G250Mpa)Main motor power:7.5Kw made in China Forming speed:10-12m/min
Number of roller forming stations is 20 plus 5 rollers leveling .Rollers manufacture:45#steel, machine tooling on the surface and polished,Shafts diameter:Ф65mm
2) Control system: PLC,Panasonic made in Japan,Yaskawa inverter made in Japan
Omron encocer made in Japan ,way of cutting:saw flying cutting,motor is 4kw.length tolerance:≤±1.5mm
3 ) Dimension of the machine: about8000mm×800mm×1200mm
4) Control voltage: 380 V,50Hz,3 Ph or according to local standard
Main Components of Manual Decoiler:
? Load capacity:1.5 Ton
? Coil inner-diametre:400-580mm
Work Flow:
manual decoiler -- feeding&leveling ---- sheet forming -- flying saw cutting? after forming -- outable
Specifications:
Profile Drawing:
|
1 |
Material thickness |
mm |
0.6-1.2mm G350Mpa |
|
2 |
Forming speed |
m/min |
12-15 |
|
3 |
Roll station |
/ |
18 |
|
4 |
Main power |
kw |
7.5 |
|
5 |
Saw cutting ?power |
kw |
3 |
|
6 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
5T/manual decoiler ( coil car as option) |
