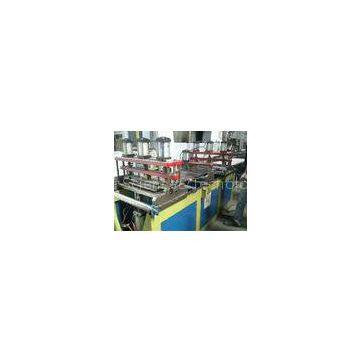

Full Automatic Rack Roll Forming Machine For Box Panel / Shelves Panel

Brand Name	HRF		Place of Origin	China
Model Number	HRF300--510

Delivery Time:80 DAYS
Certification:CE

Fast Changeable Box Panel e Forming Machine

Description:

Box panels

Shelves panels

Profile Drawing

?? Profile drawing 2:

Technology parameter

Main power:7.5KW Siemens motor made in china Machine frame structure:wall panel structure and single side Forming stations: 15 Diameter of shaft:￠70mm Material of shaft:45#steel,hardened Rolled thickness :0.5--1.25mm,G350Mpa galvanized steel sheet or pre-painted steel material of the roller: 45#steel.quenched HRC58-62 ,chromed on the surface Way of cutting: hydraulic post-cutting Hydraulic cutting power: 7.5KW ram type Cutting blade material:Cr12 Cutting length tolerance:1.0mm Profile 1:? 2sets of moulds(Corner Cut and holes punching combination moulds ) Profile 2: 2 sets of moulds for holes punching and 2 sets of? moulds for corner cut Folding and cutting: 1 set of mould ,folding angle:1degree Way of control:adopt PLC, Siemens PLC Touch screen ,winview made in Taiwan Omron encoder to measure the length Yaskawa inverter control,made in Japan Machine color: industrial blue or according to the customer\'s color code Power supply:380v,50Hz,3ph or according to the customer\'s requirement

5T manual decoiler:

Capacity: max 5tons Inner diameter: 450mm Outer diameter: 1000mm Manual inner expansion

Equipment

5 tons manual decoiler, 1 set

Side slitting unit ,1set

Side waste recoiler ,1 set

roll forming machine, 1 set(including the corner cut and holes punching moulds)

Hydraulic cutting and folding combination

PLC cabinet, 1 set

hydraulic station, 1 set

output table(2m/each X2pcs )

Flow chart

manual decoiler--feeding--2pinch rolls--slitting---corner cut& holes punching ---roll forming----hydraulic cutting&folding combination-outables

NOTE: 2 types of boxes product can be produced in 1 machine and just changes the machine on the left or right side .

Competitive Advantage:

1. We have experienced engineer who engaged in designing the box panels machines.

2. We have complete after-sales service system and we guanratee all life of the machines maintaince .

3. We can gurantee in-time delivery and well-done packaging
