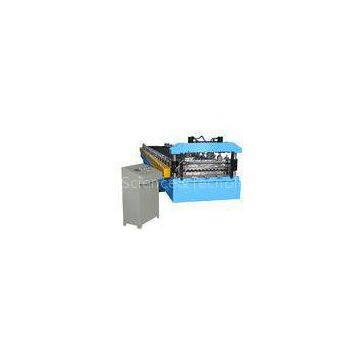

Corrugated Panel Roll Forming Machine Automatic Cold Roll Forming Equipment
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
11Kw Roofing Roll Forming Machine Hydraulic Metal Sheet Forming Machine 0.27 - 0.8mm
-
AMS control Roofing Tile Roll Forming Machine Roofing Tile Hydraulic
-
Auto Corrugated Glazed Tile Roll Forming Machine 45# Forged Steel Roller 18m/min
-
Flying Saw Cutting Shutter Door Forming Machine , PLC Sheet Metal Roll Former
-
40x90 Roof Battern Roll Forming Machine , Cold Roll Forming Equipment
-
Auto Pipe Forming Machine Hydraulic Pipe Bender R30 - R500 mm Bend Radius
Product Details
| Brand Name | HRF | Place of Origin | China | |
| Model Number | HRF762 |
Product Description
Certification:CE
Descrition:
1. We adopts 22 forming stations with Torri stands and 10T hydraulic decoiler and superonice sensor control to sychronize the speed between the roll forming machine and decoiler .The forming machine speed can reach up to 35m/min and stop-to-cut with cutting tolerance wthin 1mm
2. Corrugated panels are widely used in South Africa market .We have engaged in? supplying the corrugated roll forming machines to South African markets ?since 2008 .With stable performance and good forming product,we gained good reputations from our customers in South Africa
3. Our customers in South Africa include Corruline SA. Metalforming Technology .SA ,Augusta Profiles,Khanyisa SA and so on .
Applications:
Corrugated panel
Icorrugated roofing panel?
corrugated sheet
Drawing:
|
1 |
Material thickness |
mm |
0.27-0.8mm Full hard,G550Mpa |
|
2 |
Forming speed |
m/min |
12-35 |
|
3 |
Roll station |
/ |
22 |
|
4 |
Main power |
kw |
11 |
|
5 |
Coil width input |
762mm,914mm,925mm, |
|
|
6 |
Hydraulic power |
kw |
11kw |
|
7 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
8 |
Drive |
/ |
Chain drive |
|
9 |
Decoiler |
5T/10T |
5T/10T/15T? hydraulic decoiler(coil car as option) |
Flowchart
Competitive Advantage:
1. We have experienced engineer who engaged in designing the roll forming machines for 10 years
2. We have complete after-sales service system and we guanratee all life of the machines maintaince .
3. We can gurantee in-time delivery and well-done packaging
4. Reasonable price and good quality of the machines let us win a lot of orders from South Africa .
