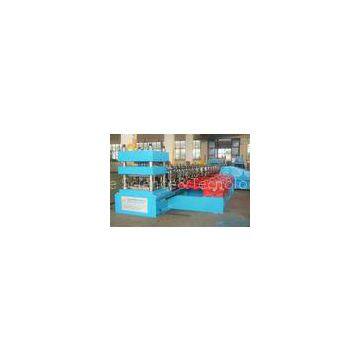

2mm Guardrail Roll Forming Machine Auto Steel Sheet Roll Forming Line

CXM192 Guardrail Forming Machine Line

Description:

Expressway guardrail

Barrier rails

Guardrail beams

Specifications:

The profile

? The thickness of sheet: 2mm --- 3.5mm cold rolled or galvanized steel

? the holes size drawing:

The equipment flowchart

The production flow of equipment

Decoiling — Feeding — leveling ----? Punching — roll forming ---- hydraulic???? cut to length — 6m stacker

?- Type of material to be Processed:.........CR.HR or GALVANISED COILS???

?Width of Coil:.......................476 mm

?Max. Thickness of Coil:...................3.5mm

?Max. Weight of Coil:......................10000 kg.

Variable Line Speed:......................18-25 mtr./min.

Automation level in performance:..........WIDTH VARIATION SYSTEM.????????????????????????

?Material Loading/Unloading NSYSTEM........Automatic.

?Accuracy Level:........................PROFILE DIMENTION: 1.5 M.M.

main motor power: 45kw

Decelerating motor: BWD14-43-37kw, made in Shanghai or

drive: joint coupling drive( gearbox for each roller station see picture below)

main shaft dia: ￠100mm?? material: 45﹟forge steel

roller material: GCR15 quenched 58°-62°,chromed

roll station:13stations

Working speed:5m--12m/min(not including punching)

Transducer: Panasonic /Yaskawa made in Japan. 380V 50HZ

Way of control: PLC,Panasonic

Computer operating panel:MSG touching screen made in Taiwan

Competitive Advantage:

Good quality and reasonable price
