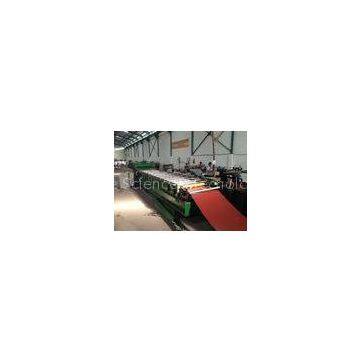

3 in 1 Glazed Tile Roll Forming Machine PLC C Stud Rolling Forming Machine 2 - 4mm

Brand Name	HRF		Place of Origin	China
Model Number	HRF 3 IN 1

Delivery Time:70 days
Certification:CE

Descrition:

3 in 1 Combination Profiles Paralled High-Speed Forming Machine

(Main U channel,Angle & Top Hat profile )

Specification:

Frame system:standing tower polished on the face and chromated(see the picture) Rolled Suitable coil strip:58mm,98mm and 105mm Rolled thickness:0.45mm--0.9mm galvanized steel Standing roller station:13 stands Working speed:35-50m/min ,adjustable Main machine power:15KW Siemens variable-speed motor made in China Way of drive:gearbox for each roller station Material of roller:GCR15 steel,heat treatment,HCR58-62,chromated on the roller Material of shaft:45# steel ,shaft diameter:60mm.HB220-260 Way of cutting:hydraulic flying shear with AC servo-motor.(it is without stopping the machine for cutting),Yaskawa servo-motor made in Japan Hydraulic power:5.5KW Cutting blade material:Cr12 Cutting Length tolerance:1.5mm Hydraulis pressure:16Mpa Hydraulic soilnoids:Rexroth made in Germany Way of control: PLC control,Siemens made in Germany Siemens interter control made in Germany Siemens Touch screen made in Germany Schneider contactors made in France Electrical requirements:380v,50Hz 3Ph Size of machine: approx 9m*1.5m*1.5m We will adopt 3 sets for solenoids on the hydraulic station to control 3 sets of cutting device.while cutting one of the profiles,the other 2 sets cutting device wont work to gurantee the cutting blade not to loose the life

Equipment components:

Double-head motorized decoiler 1 pc (see the picture)

Roll forming machine with flying shear ,1 set

PLC cabinet 1 pc

Hydraulic station 1pc

Cutting blades: 3 sets

Motorized transsmission table (4M)

Applications:

C studs

Ceiling chanel

Top hat

Specifications:

Profile Drawing

Flow chart:

Double head Motorized decoiler — feeding , leveling -- forming —- flying shear - motorized transmission table

NO.	Items	Unit	Main specification
1	Material thickness	mm	0.5-1.2mm
2	Forming speed	m/min	35
3	Roll station	/	14
4	Main power	kw	15
5	Hydraulic power	kw	5.5
6	Control system	/	PLCpanasonic/omron/simens/mitsubishi
7	Drive	/	Chain drive
8	Decoiler	3T	Manual type and hydraulic decoiler and coil car as options
