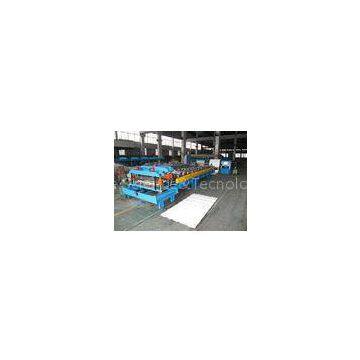

7.5Kw Glazed Tile Roll Forming Machine Roof Panel Forming Line For Prefabricated Houses

23-185-1120 Roofing Tile Forming Machine

Descrition:

We adopt the seperate Torri stands structure which looks bright and beautiful with 15 forming roller stations and can process the pre-painted steel,pre-painted galvalume coils and so on.the rolled thickness is from 0.4mm to 0.7mm .the forming speed is 18m/min and line speed is about 3-5m/min.
The main machine power is 7.5kw motor made in China,hydraulic station power 4kw with solenoid made in Taiwan.
We use 45# forged steel as rollers materials,CNC processment and hard chromed on the surface of the rollers.HRC 48-52.
?
The way of control is PLC,Siemens made in Germany.Omron encoder and Yaskawa interver speed control made in Japan.
?
The whole machine demension is about 8500mmx 1700mmx1400mm
Applications:
?
Roof panels,Roofing Tiles
Step roofing panels
?

?
Specifications:
?

Drawing:

Main Technical specifications:

Flowchart:

?
5 hydraulic decoiler --- Guiding --- Film covering --- Roll forming machine -- pressing ---- hydraulic cutting --- Outables

?
Competitive Advantage:

1:? We are a professional manufacturer of designing,producing the glazed tile forming machine and? exported these machines to Philippines markerts for 5 machines for one year in 2013
?
2: With top quality and reasonable price we build a long term business relations with some overseas companies
?
