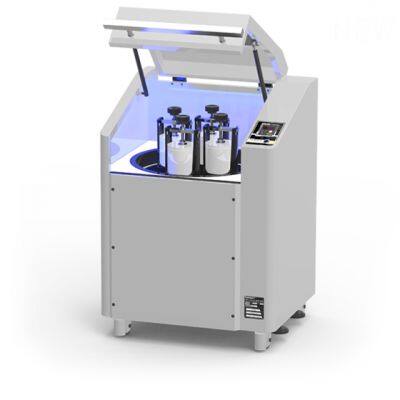

POWERFUL 4 cabinet planetary grinder powerful type

The POWERFOL 4 cabinet planetary ball mill adopts a vertical cabinet structure combined with ergonomic design, providing users with a comfortable standing experience. The maximum processing capacity is 4000ml, and the speed is 1200 revolutions per minute, giving POWERFOL 4 stronger crushing ability and higher grinding efficiency, and faster sample results. It also uses a frequency conversion control system to achieve multiple functions such as speed control, forward and reverse alternation, intermittent and continuous modes. It is equipped with an open PC window and LED lighting, supports two driving voltages of 220V and 380V, supports inert gas protection grinding, and can be equipped with liquid nitrogen low-temperature protection grinding, temperature monitoring and touch control;

Technical parameters:

Product Name: Cabinet planetary ball mill - Strong type

Model: POWERFUL 4

Processing principle: Impact force | Friction force

Application sample characteristics: fine | medium low hardness | brittle | dry or low viscosity

Processing type: Crushing | Grinding | Mixing

Maximum injection size:<20 mm

Sample size range: 0.1-20 μ m

Maximum processing capacity: 4000 ml

Maximum speed of ball milling jar: 1200 r/min

Transmission mode: European standard

Movement mode: planetary motion

Function: Continuous and intermittent operation | Emergency stop | Timer | Power off memory | Overload and dangerous operation protection

Additional Features: LED Lighting | Heat Dissipation | Universal Wheel

Material of ball milling jar: tungsten carbide | zirconia | agate | stainless steel | MC nylon, etc. Optional

Number of ball milling jars: 4

Ball mill tank capacity: 1000 ml

Grinding Ball Material: Tungsten Carbide | Zirconia | Agate | Stainless Steel, etc. Optional

Grinding method: dry grinding | wet grinding

Electrical description: 220V/380V, 50-60Hz, 1500W

Power ports: National standard | European standard | American standard | British standard, etc

Net weight: 336 kg

Dimensions (length, width, height): 780 * 650 * 1080 mm

Protection level: IP65
