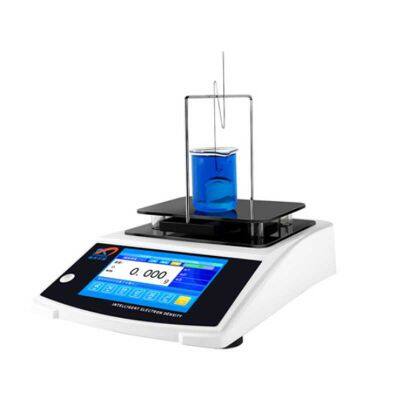

Petroleum gasoline densitometer

According to the ASTM D1298 standard, the petroleum density meter uses the liquid buoyancy method based on the Archimedes principle for measuring the specific weight of petroleum. Through special software calculations, quickly read the specific gravity, API °, Bomei degree, and concentration of crude oil and liquid petroleum products.

Technical data:

API ° and specific gravity exhibit a non-linear inverse relationship. Liquids with high specific gravity will exhibit low API °, and vice versa.

There is a linear relationship between specific gravity and w/gal concentration. It can be converted through E1 and E2.

3. According to the API ° reading, crude oil is divided into: light crude oil>31.1 API °, medium oil between 22.3 API °~31.1 API °, heavy oil<22.3 ° API °, and overweight crude oil<10.0 API °.

Technical parameters:

brand

jiechen LAB

model

WLD-320API

WLD-150API

Maximum weighing

300g

150g

weighing accuracy

0.005g

0.001g

API accuracy

0.1°API

0.01°API

AIP Scope

0.1~100.0°API

0.01~100.00°API

Concentration resolution

0.1%

0.01%

concentration range

0.1~100.0%

0.01~100.00%

density accuracy

0.001 g/cm3

0.0001 g/cm3

Density range

0.001—99.999g/cm3

0.0001—99.9999g/cm3

baume degrees

0.1BE

0.01BE

The results show

Density, Bomei degree, relative density, API degree, average density, minimum density, maximum density

measuring principle

Archimedes' principle buoyancy method

Time

About 5 seconds

display

5-inch industrial touch screen

Parameter setting

Specific gravity hammer density, weight setting, density upper and lower limits setting, concentration parameter setting, standard liquid density setting

data statistics

Automatically save 100 sets of density values and automatically calculate the average, maximum, and minimum values

Correction method

Single point automatic calibration, multi-point automatic calibration, pure water calibration | Verification

data interface

Standard RS-232 interface, customizable USB interface

optional accessories

WLD-58 density meter thermal printer, multi-point calibration weight group, label printer

supply voltage

AC100V~240V    50HZ/60HZ

Outer packaging size

Length 42.5 cm x Width 17.5 cm x Height 32.5cm

Product features:

1. Adopting STMicroelectronics' high-performance 32-bit ARM processor, the processing power is hundreds of times faster than traditional instruments, with high accuracy and measurement precision For every measurement you make, we will provide you with protection.

2. Built in large capacity rechargeable lithium battery, Tesla 18650 battery cell, independent battery cell protection circuit board, withstand voltage and drop, aviation grade reliability

3. The HBM sensor imported from Germany has a 2UV level resolution output, and each factory equipment undergoes a strict 48 hour 40 degree high-temperature aging test. We guarantee that your every user experience is carefully selected by us

4. Intelligent Pinyin Chinese character input, printing content can be freely edited. Support ticket printing and label printing. Accurately record your every measurement data; Customize print titles and company information, allowing you to print as you please every time

5. Automatically save 100 sets of measurement data and perform statistical analysis on the data. Dynamic deletion, statistical printing, exporting to USB drive

Accurately and efficiently record your every measurement data, freeing you from tedious measurement work.
