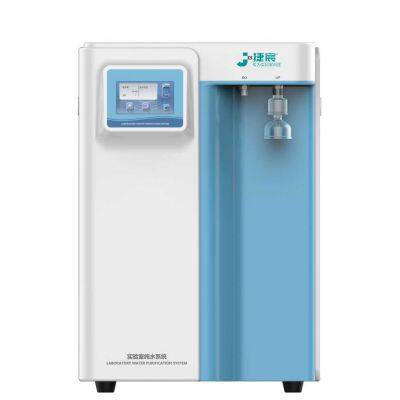

Intelligent touch dual stage reverse osmosis ultra pure water system，Deionized pure water, ultrapure water

? Large screen color touch LCD display, intelligent and user-friendly operation interface can fully monitor the working status and real-time data of the equipment

? The controller adopts a 32-bit low-power processor as the control, with low voltage alarm shutdown protection, automatic stop of water production core when the water tank is full, and features ultra-high computing rate and low power consumption. It integrates analog sensor access, switch signal input, control output required for water treatment, as well as online monitoring of water quality conductivity, resistivity, water flow rate, water pressure, and water tank level

? Double password protection, user password and initial password factory mode password protection

? The chassis is made of ABS integrated molding, with a 30 degree inclined design, making display and operation more convenient, in line with ergonomics, and friendly human-computer interaction

? Simultaneous online monitoring of three water quality channels, real-time monitoring of source water, RO water, and ultrapure water quality

? Fully automatic RO membrane anti scaling flushing program, extending the service life of RO membrane

? Ultra pure water circulation system that can be freely started and closed to maintain low levels of bacterial contamination in the system

? Integrated water circulation mode, users can set their own minimum water quality standards, allowing pure water that cannot meet their needs to enter circulation mode until the water quality is qualified

? It has the function of automatically recording events and statistics, including the status and data at the time of event occurrence. After the event is restored, the controller will record the data to the memory for users to view in the future

? All pipelines have obtained NSF certification, with brand new quick connect fittings, making filter column replacement and maintenance more convenient

? Original nuclear grade resin, fully drooping flow ultra purification column design, always ensuring * * water quality

? Can be equipped with USB interface and micro printer interface, capable of real-time storage and printing of historical data (optional)

? 30 liter food grade PE material pure water tank, equipped with sterilization and filtration system to meet different needs and reduce water quality re pollution (optional)

? UV sterilization system effectively kills bacteria, reduces TOC, and enhances the system's applicability (optional)

? Original 0.22 μ m PE polyether sulfone composite membrane terminal sterilization filter, ensuring water quality (optional)

? Mobile water intake arm can be used to achieve long-distance water intake function, and can be freely raised and lowered to meet different water intake needs (optional)

Name: Physical and chemical analysis type, heat removal prototype, low organic matter type, comprehensive high-end type

Product model JCY-10BET/2OBET JCY-10CET/2OCET JCY-10DET/20DET JCY-10GET/20GET

Application scope: Standard experiments, environmental analysis, biochemical analysis HPLC、TOC、CP、 High performance liquid chromatography (HPLC), gas chromatography-mass spectrometry (GC-MS), total organic carbon (TOC) analysis, liquid chromatography-mass spectrometry (LC-MS) and other DNA analysis techniques such as ion chromatography, ion plasma chromatography (ICP), graphite furnace atomic absorption spectroscopy (GFAAS), cell culture, immunohistochemistry, endotoxin analysis, electrophoresis, molecular biology, etc., as well as endotoxin analysis

Analysis, Cellular Immunochemistry, Electrochemistry

Swimming, amino acid analysis, etc

Water production capacity 10L/H; 20L/H； 30L/H； 40L/H

The incoming water source is urban tap water, with a water temperature of 1-50 ℃, a water pressure of 0.1-0.5Mpa, and a TDS<300ppm

Instant water intake 1.5-2.0L/min (when the water tank is full)

UP Ultra Pure Water Index

Electrical resistivity 18.25M Ω .cm@25 ℃

Heavy metal ions<0.1ppb

Total Organic Carbon (TOC)<10 ppb<10 ppb<3 ppb<3 ppb

Bacteria<0.1cfu/ml

Particulate matter (>0.2 μ m)<1/m

Heat source (endotoxin) -<0.001Eu/ml -<0.001Eu/ml

RNases -<0.01ng/ml -<0.01ng/ml

Deoxyribonucleases (DNases) -<4pg/ul -<4pg/ul

RO reverse osmosis pure water index

Conductivity Level 1 RO Water: Conductivity ≈ Source Water Conductivity × 5%; Secondary RO water: 1-5 us/cm (conductivity ≤ source water conductivity × 2%)

Organic retention rate>99%, when MW>200 daltons

Particle and bacterial retention rate>99%

Dimensions: length * width * height: 450 * 530 * 600mm

Weight approximately 22kg

Power supply 220V, 50/60Hz

Power 45-100W

System configuration host (including complete set of consumables+pressure water tank)+accessory package
