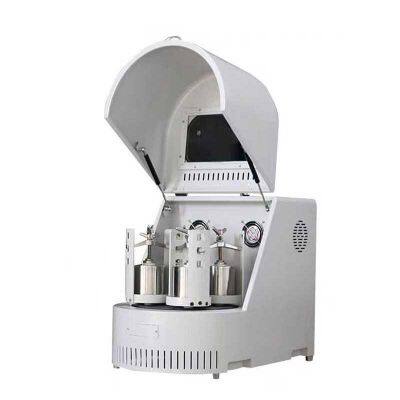

QM-3SP04 ball mill（0.4L）

Product Introduction

Planetary ball mill is a device for mixing, fine grinding, sample preparation, new product development, and small-scale production of high-tech materials. Our vertical semi-circular planetary ball mill has a small volume, comprehensive functions, high efficiency, and low noise. It is a powder equipment used by scientific research institutions, universities, and enterprise laboratories to obtain research samples (four samples can be obtained simultaneously in each experiment). Equipped with a vacuum ball milling tank, it can grind samples under vacuum conditions.

application

Vertical semi-circular planetary ball mills are widely used in geological, mineral, metallurgical, electronic, building materials, ceramics, chemical, light industry, pharmaceutical, environmental protection and other departments. They are suitable for electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalysts, fluorescent powders, long afterglow luminescent powders, rare earth polishing powders, electronic glass powders, fuel cells, zinc oxide varistors, piezoelectric ceramics, nanomaterials, circular ceramic capacitors MLCC、 The production field of thermistors (PTC, NTC), ZnO varistors, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, Ni Zn ferrite, Mn Zn ferrite and other products.

Equipment name: planetary grinding machine

Model QM-3SP04

Maximum grinding tank volume 100ML * 4 pieces

Grinding can materials include zirconia, hard alloy, nylon, polytetrafluoroethylene, polyurethane, agate, alumina, stainless steel, vacuum, etc

The maximum loading material and grinding medium per can shall not exceed two-thirds of the volume

The feed particle size for brittle materials is less than 10 millimeters, while for others it is less than 3 millimeters

The minimum particle size for discharge can reach 0.1 microns (depending on the material and process)

The maximum revolution speed is 45~435 (rpm), and the maximum rotation speed is 90~870 (rpm)

Total running time (min) 1-9999

Alternating running time (min) 1-999

Noise ≤ db 58 ± 5

Variable frequency speed regulation method

Equipment power supply 220V 50HZ

Power 0.25KW

Working mode: Two or four tanks working simultaneously

Equipment weight 29kg

Equipment appearance reference size 500 × 300 × 340mm

The program-controlled ball mill adopts high-tech microcomputer chip control, which can operate alternately in forward and reverse directions according to the set program (1-999min), as well as in forward, pause, reverse, pause, and forward directions (1-999min). It is particularly suitable for cooling or intermittent operation needs.
