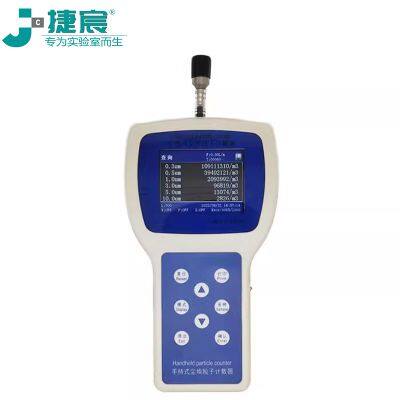

Y09-3016 Portable Handheld Laser Dust Particle Counter

Y09-3016 Portable Handheld Laser Dust Particle Counter

The dust particle counter can directly detect clean environments with cleanliness levels ranging from one million to one hundred. It adopts a lightweight and sturdy high-pressure injection molding process plastic shell, which is easy to hold. Easily configure the instrument using the keyboard menu. Built in storage for up to 1000 particle records using points, which can be directly read on the screen or downloaded to software via USB port. Real time particle data from 6 particle size channels can be displayed simultaneously. The product has a wide range of applications and can monitor biosafety, HVAC systems, computer rooms, beverage packaging environments, drug and medical device production environments, hospital clean operating rooms, automotive spraying environments, microelectronics, biochemical products, food hygiene, fine chemicals, precision machinery and other production and research departments. It is an ideal instrument for HVAC and pharmaceutical enterprises and their supervisory management departments to implement GMP standards and electronic production enterprises.

Features and advantages

?  Particle size range: 0.3 μ m, 0.5 μ m, 1.0 μ m, 3.0 μ m, 5.0 μ m, 10.0 μ m

?  Flow rate of 0.1 FT3 (2.83 L/min)

?  Simultaneously display 6 channels

?  Fully compliant with ISO14644-1, GB50073-2001, GMP, FS-209E standards

?  USB output

?  Compatible with software

?  1000 data memory

?  999 testing locations

?  LCD display screen

?  Display screen data reading

?  Li-On rechargeable

?  Chinese and English keyboard menu

?  Display in both Chinese and English

?  High impact plastic injection molding

?  Lightweight - weighing only 1.3 lbs (0.58kg)

Technical parameters:

light source

Semiconductor laser with a lifespan of over 35000 hours

sample flow

2.83L/min (0.1ft3) imported sampling pump

Display mode

LCD display, real-time display, previous cycle display, real-time concentration display, can display time, date, measurement value, temperature and humidity, room number, sampling point, sampling frequency, battery level, status and other parameters, 95% UCL calculation, can directly display particle concentration (particles/cubic meter)

Rechargeable Battery

Lithium ion battery, 7.4 V, 2200mAh

power supply

AC power adapter, AC: 100V~245V, 50/60 Hz to DC: 7.4V, 1A;

working hours

6 hours (remaining battery indicator)

count mode

Cumulative value, difference value, concentration value

testing mode

Single, repetitive, continuous, computational, remote

Units

The unit can be converted into m3

Particle size channel

0.3 、0.5、1.0、3.0、5.0、10μm, Simultaneously count six particle sizes

sampling period

1-10000 (s), delay count: 0-99 (S), self purification time: ≤ 10 (min)

work environment

Temperature: 10-40 ℃ (50-104 ℉), relative humidity: 20-90% RH, no condensation Atmospheric pressure: 86-106KPa

Temperature and humidity:

Choose (1) Temperature: 0-50 ℃± 1 ℃ (2) Humidity: 0-100% RH ± 5%

UCL settings

Sampling points (A): Set from 2 to 9 points. Sampling frequency per point: (L) 2-9 times set

Measurement position: 0-999

UCL report

Compliant with ISO14644-1, GB50073-2001, GMP, FS-209E standards

Data Storage

It can store 1000 sets of data (circular buffer) (including particle size, data, environmental data, year, month, day, time, sampling volume, data location port), and the data will not be lost after power failure.

communication interface

RS232， 9600 baud rate

Alarm settings

The instrument is equipped with a level alarm function, which can alarm for cleanroom levels 100, 1000, 10000, 100000, 300000, and 1000000 exceeding the standard, as well as for low battery voltage

zero count

Meets the requirements of JJG-547-88 Dust Particle Counter Verification Regulations JIS B9921:1997, with less than one count every five minutes

Basis Set Superposition Error

At 5%, 2000000 particles per cubic foot

Printing function

External printer (optional)

External dimensions

230×130×45（mm）

weight

0.58kg

calibration

Traceable to the National Institute of Standards and Technology (NIST) in the United States, our company has passed the national metrology standard building assessment and can be traced back to the Shanghai Institute of Metrology and Measurement Technology. We can also calibrate ourselves or third-party national metrology institutions

Standard configuration

Suitcase/charger, power sampling head, zero filter, RS 232 connection cable, computer connection communication software CD, factory inspection report, configuration list, instruction manual

Optional parts

External printer, professional triangular sampling rack, temperature and humidity sensor

Warranty period

One year warranty
