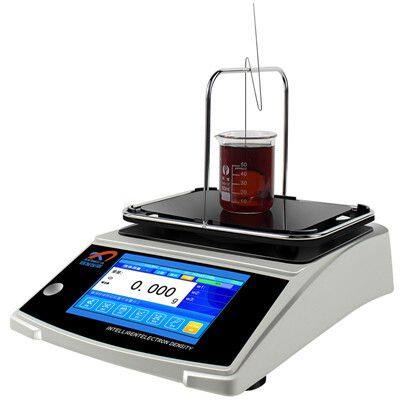

Multi functional liquid density meter

The multifunctional liquid density meter only requires one step to instantly display the density value, which complies with standards and specifications such as GB/T 611, GB/T11540, GB/T2206, GB/T5518, etc. The Wanli Duo densitometer combines modern electronic technology with Archimedes' principle to directly read the density (specific gravity) values of various liquid solutions. It is one of the most common methods for measuring liquid density, and compared with traditional Wechsler balance method and specific gravity bottle method, it has extremely convenient operability. It can automatically determine whether the density is qualified or not through the setting of upper and lower limits, and provide alarm prompts; When measuring different liquids, different specific gravity hammers can be selected to test flowable liquids, corrosive liquids, viscous liquids (pastes), and have the function of measuring Baume's degree; Higher measurement accuracy, faster operation, and suitable for multiple consecutive tests.

Suitable for measurement: various chemical solutions, chemical additives, modern chemical energy, petroleum fuels, fine chemicals, chemical reagents, reagents, additives, solvents, adhesives, paint coatings, asphalt, chemical oils, drinking oils, food additives, drinks and beverages, animal urine, animal blood, flowing liquids, viscous liquids, volatile liquids, corrosive liquids, high-temperature liquids, alcohol, flux, essence, blood, glycerin, sodium chloride, electrolyte, diesel, refrigerant, dichloromethane, sulfuric acid, and other similar liquids can be measured.

Technical parameters:

brand

jiechen LAB

model

WLD-3205YTMD

WLD-1501YTMD

Weighing range

0.005-320g

0.001-150g

density

readability

0.001   g/cm3

0.0001   g/cm3

measurement platform

Stainless steel test bracket

range

Density>1 and<1 can be tested [0.001g/cm3~7.800g/cm3]

Measurement type

Any liquid with fluidity

The results show

Density, Bomei degree, relative density, concentration, average density, minimum density, maximum density

measuring principle

Archimedes' principle buoyancy method

Time

About 5 seconds

display

5-inch industrial touch screen

Parameter setting

Specific gravity hammer density, weight setting, density upper and lower limits setting, concentration parameter setting, standard liquid density setting

data statistics

Automatically save 100 density values and display the average, maximum, and minimum values based on the number of saved groups

Correction method

Single point automatic calibration, multi-point automatic calibration, pure water calibration | Verification

data interface

Standard RS-232 interface, customizable USB interface

optional accessories

WLD-58 density meter thermal printer, multi-point calibration weight group, label printer, anti-corrosion liquid component, viscous liquid density component

supply voltage

AC100V~240V    50HZ/60HZ

Outer packaging size

Length 42.5 cm x Width 17.5 cm x Height 32.5cm

Main features:

1. Adopting sensors imported from Germany to ensure accuracy and precision.

2. Only one step is needed to directly read the density value, saving a lot of testing time. It has the function of measuring the wave density and can directly display the wave density

3. Convenient sampling, the measured sample only requires about 50CC

4. The measuring cup is easy to clean and is not limited by the small diameter of the specific gravity bottle. It can be used with other measuring cups of similar size.

5. It can measure the density of samples at temperatures ranging from room temperature to 100 ℃

6. Can test corrosive liquids, viscous liquids, strong acid and strong alkaline liquids (Xu chooses relevant liquid accessories)

7. Equipped with an integrated stainless steel measuring hook, easy to install and clean

Product features:

1. Adopting STMicroelectronics' high-performance 32-bit ARM processor, the processing power is hundreds of times faster than traditional instruments, with high accuracy and measurement precision For every measurement you make, we will provide you with protection.

2. Built in large capacity rechargeable lithium battery, Tesla 18650 battery cell, independent battery cell protection circuit board, withstand voltage and drop, aviation grade reliability

3. The HBM sensor imported from Germany has a 2UV level resolution output, and each factory equipment undergoes a strict 48 hour 40 degree high-temperature aging test. We guarantee that your every user experience is carefully selected by us

4. Intelligent Pinyin Chinese character input, printing content can be freely edited. Support ticket printing and label printing. Accurately record your every measurement data; Customize print titles and company information, allowing you to print as you please every time

5. Automatically save 100 sets of measurement data and perform statistical analysis on the data. Dynamic deletion, statistical printing, exporting to USB drive

Accurately and efficiently record your every measurement data, freeing you from tedious measurement work.

Measurement steps:

1. Place the measuring cup with the sample on the measuring placement board and deduct the weight of the hook.

2. Hang the standard weight with a hook and fully immerse it in the liquid to be tested, displaying the density value. Pressing MODE can display the degree of wave or relative density
