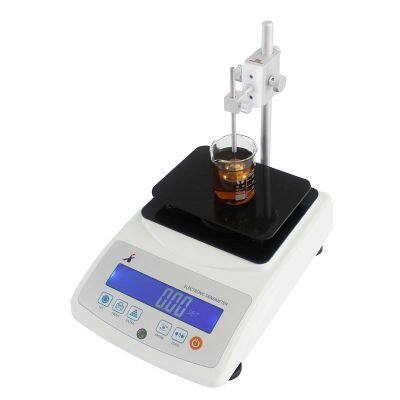

Viscous liquid densitometer

The viscous liquid densitometer uses German HBM imported sensors, combined with Xiongfa's independently produced density components, to quickly test the density of various liquids! Easy to operate and fast!

Suitable for: polyester, polyether, mayonnaise, syrup, polyethylene, dispersion paint, ceramic paste, mercury, ink, liquid resin, grinding liquid, asphalt, liquid adhesive, medium and high viscosity flowable liquid research laboratory.

It can also be used to test the density of various fluids such as oils, paints, inks, coatings, plastics, pastes, rubber, latex, detergents, resins, condensed milk, cream, drugs, and cosmetics. It is an instrument used in textile, chemical, petroleum, electromechanical, pharmaceutical, food, light industry, construction and other industries, as well as in laboratories and analysis rooms of colleges, research institutions, and military departments.

Principle: According to the provisions of GB/T21862, GB/T15223, GB/T6750, ASTMD1475, ISO2811-2, ISO1675, and DIN53217-3, the immersion Gamma sphere displacement method of Archimedes is used, combined with a specially designed specific gravity meter, to accurately read the measured values.

Technical parameters:

Density meter model: XF-300BH XF-300HD XF-120HE

Sample weight range: 0.01g~300g 0.005-300g 0.001-120g

Sample density accuracy 0.001 g/cm3 0.001 g/cm3 0.001 g/cm3

Test type: Medium and high viscosity liquids, ordinary liquids

Test result: Specific gravity

Test time: 10 seconds

Standard interface: RS-232

Product Features:

1. The immersion depth of Gamma liquid level can be adjusted arbitrarily.

2. The problem of sticking to the bottle mouth when using Guy Lussac and Hubbard specific gravity bottles can be improved.

3. The Gamma ball can be easily removed and replaced, making it easy to operate.

4. Gamma ball weights of any weight can be used as their standard value, without being limited by volume.

5. Can compensate for errors caused by air buoyancy.

Standard accessories: specific gravity tester, lifting equipment, Gammer ball.

Operation steps:

At 0.00, take 50ml of liquid into a beaker and place it on the support table above the host

2. Use the rotating knob of the lifting platform to lower the GAMMA ball into the beaker.

3. Lower the GAMMA ball and immerse it into the liquid in the beaker until the liquid level reaches the middle position where the neck of the ball is thin. You can compare this location by testing the density of water

At this point, weight will appear on the display screen. After the weight stabilizes, press the ENTER key, and the density will be displayed above the screen
