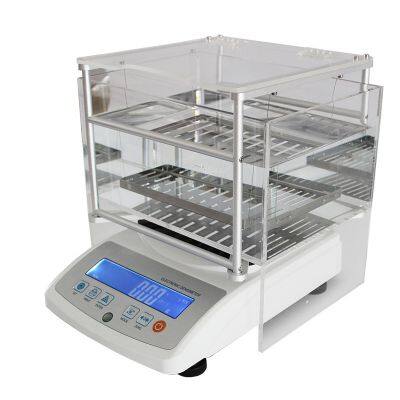

Large range solid density meter

The large range solid density meter MDJ-2000E adopts sensors imported from Germany, with high accuracy and good stability; Suitable for density testing of products that cannot be damaged, cut, have a large volume, weight, and high foaming rate. The measuring frame adopts an open structure design to ensure the convenience of taking samples.

Widely used: gold, antiques, jade, precious stones, auto and motor vehicle parts, aerospace parts, large machinery parts, hard alloy, precious metal products, rare earth permanent magnets, magnetic materials, rare earth materials, nonferrous metals, rare metals, powder metallurgy, ceramics industry, metal seals, metallurgy industry, forging industry, fireproof materials, large rubber and plastic parts, large foams, foam, foam, sponges, sporting goods, soles, rocks, geology, mining, civil engineering, cultural relics archeology, key laboratories, materials science research laboratories.

Technical parameters:

brand

jiechen LAB

model

MDJ-2000E

MDJ-3000E

MDJ-5000E

Max measures weight

2000g

3000g

5000g

weighing accuracy

0.01g

0.01g

0.01g

density accuracy

0.001 g/cm3

Density range

0.001~99.999g/cm3

Test sink

Standard internal sink size: 24 * 17 * 12cm in length, width, and height

Customization: Different sizes of sinks/density measuring racks can be customized according to the measured product dimensions

Measurement type

Density of any solid form, density>1; All<1 can be measured

Density measurement rack

Aluminum alloy measuring frame

measurement speed

10 seconds/time

The results show

Density, volume

Parameter setting

Water temperature setting, measurement medium density setting

supply voltage

AC100V~240V    50HZ/60HZ

Functional features:

1. It has the function of direct reading density and volume measurement, and can automatically display without calculation

2. It can set the upper and lower limits of density, automatically determine whether the product is qualified, and has a prompt function

3. Using water as the medium, other liquid media can also be used [solution compensation function]

4. Equipped with actual water temperature setting function [temperature compensation function]

5. Adopting a large capacity measuring sink (24 * 17 * 12cm in length, width, and height), it is more convenient to test large solids. Different sizes of sinks can be customized according to the size of the measured product

6. Built in rechargeable battery, more suitable for on-site testing

7. Equipped with RS-232C communication interface, convenient for connecting PC and printer. XF-68 printer can be selected to print measurement data

Operation steps:

1. Place the product on the measuring table at 0.00g, wait for the value to stabilize, and then press the ENTER key to store it

2. Place the product in water, wait for the value to stabilize, press the ENTER key to memorize, and the screen will directly display the density value.
