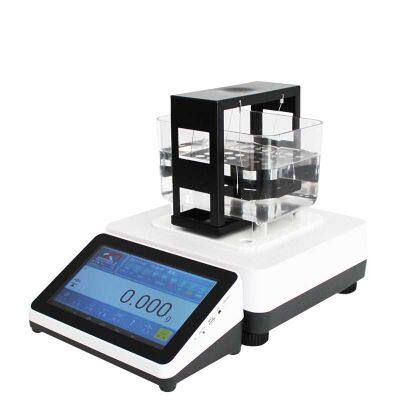

Fully automatic solid density meter

The fully automatic solid density meter XFMD-1201B adopts the Xiongfa Intelligent Android operating system, which quickly reads the density and volume of various irregular solid particles. The digital display is directly read, and anyone can easily operate it

Principle: Adopting Archimedes buoyancy method and complying with ASTM D792、ASTM D297、 GB、T1033、GB、T2951、 GB、T3850、 GB、T533、 HG4-1468、 JIS K6268、 ISO 2781、ISO 1183、GB、T9867、DIN-53516、ISO-4649、GB、T1689、GB、T1689… Waiting for standard specifications.

Application range of fully automatic solid density meter: alloy materials, hard alloys, precious metal materials, motor vehicle parts, aerospace parts, metal seals, powder metallurgy, ceramic products, magnetic materials, rubber, plastic products, plates, sheets, pipes, wires, sealing rings, silicone, plastic particles, PP particles, PE particles, PVC particles, PC particles, nylon resin, engineering plastics, EVA materials, PU materials, elastomers, PET, PE, PS, PVC film, rock, treasure, stone, jade, jadeite, fossils, etc

Technical parameters:

1. Model: XFMD-1201B XFMD-2201B XFMD-3201B

2. Density analysis: 0.0001g/cm3 0.0001g/cm3 0.0001g/cm3

3. MAX weighing: 120g, 220g, 320g

4. MIN weighing: 0.001g 0.001g 0.001g 0.001g

5. Density measurement range: 0.0001-99.9999g/cm3

6. Measurement type: Any block, particle, or floating object with irregular density greater than or less than 1

7. Testing principle: Archimedes buoyancy method

8. Testing time: 5-20 seconds

9. Calibration method: single key weight calibration, automatic detection

10. Display value: weight g, density g/cm3, volume cm3, percentage%

characteristic:

1. Wireless split design (the weighing part and display part are wirelessly connected), which will not affect the measurement of the sensor element due to button actions, causing unstable screen problems; There will be no problem of damage to the circuit board and sensors caused by liquid overflow

2. All core components of the host are imported from Germany and the United States, ensuring stability

3. 7-inch industrial tablet touch screen, full-color large screen, using Metro color scheme, adopting environmentally friendly colors, and working for a long time without eye fatigue

4. It can test the density, volume, and other parameters of any solid, particle, or float with irregular density greater than or less than one

5. It has actual water temperature setting [temperature compensation], measurement medium density setting [solution compensation]

6. Integrated molding of density accessories, easy installation

7. We use a PC integrated large capacity measuring sink, which is corrosion-resistant, drop resistant, and burst resistant, and can test large samples. The sink size is 15.3 cm in length, 10.7 cm in width, and 8.0cm in height. Our company can customize various large range sinks non-standard

8. The main unit of the density meter and the density display are both equipped with built-in batteries, which are convenient to carry and can also cause the problem of inability to test due to power failure

9. Equipped with RS-232C communication interface, convenient for connecting PC and printer. XF-68 printer can be selected to print measurement data

Test steps:

① Place the product on the measuring table, measure the weight in the air, and press the ENTER key to memorize.

② Place the product in water to measure its weight, press the ENTER key to remember, and display the density value

Standard Accessories: ① Host ② Sink ③ Measuring Platform ④ Tweezers ⑤ Float Accessories Set ⑥ Weights ⑦ Windproof and Dustproof Cover ⑧ Particle Accessories Set ⑨ Power Transformer Set ⑨ Certificate of Conformity Manual

Purchase accessories: ① XF-68 density meter dedicated printer ② Liquid density component [can test the density of liquids]
