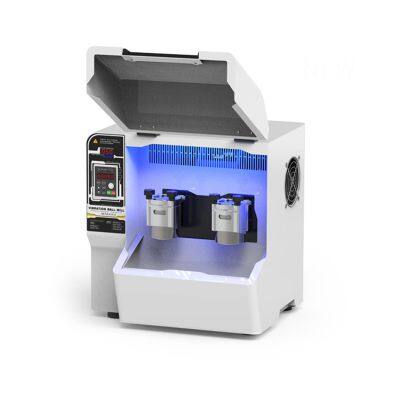

MM600 Nano High Energy Vibration Ball Mill

MM600 is a new desktop high-energy nano ball mill with powerful crushing, grinding, and mixing capabilities. It can quickly complete the nano scale preparation of various laboratory samples and can be used to place two ball milling tanks with a volume of 125ml or less, as well as multiple ball milling tanks with a volume of 20/10/5/2ml. The principle of this instrument is to use two high-speed ball milling tanks that alternate in an arc-shaped reciprocating motion, so that the samples are continuously violently impacted by the grinding balls in the grinding tanks to achieve the purpose of crushing and refining. MM600 adopts variable frequency control to achieve timed, speed controlled, continuous, and intermittent grinding, with temperature detection, overload protection, and high temperature protection functions. It can be configured with vacuum ball milling tanks for vacuum and inert gas protection grinding, and can be equipped with liquid nitrogen catalytic grinding. System

Technical parameters:

Product Name: Nano High Energy Vibration Ball Mill

Model: MM600

Processing principle: Impact force | Friction force

Application sample characteristics: hard | medium high hardness | brittle | dry | viscous | fibrous | soft | elastic

Processing type: Mechanochemistry | Mechanical Alloy | Crushing | Mixing | Homogenization

Suggested maximum injection size:<10 mm

Sample size range:~100 nm

Grinding method: dry grinding | wet grinding | vacuum grinding

Grinding platform (number of cans): 2

Movement mode: Vertical arc-shaped reciprocating motion

Vibration frequency: 180-1800 r/min

Main functions: continuous operation | intermittent operation | timing | speed regulation | data storage | power-off memory | overload protection | temperature detection | high temperature protection

Additional features: Quick fastening | LED lighting

Classic crushing time: 10-60s

Ball milling jar material: tungsten carbide | zirconia | polytetrafluoroethylene | nylon | hard steel | stainless steel

Maximum capacity of ball mill jar: 2X125ml

Ball milling jar fixing method: threaded fastening

Grinding ball size: 1-45mm optional

Grinding ball material: tungsten carbide | zirconia | agate | stainless steel

Control method: Variable frequency control

Electrical description: 100-120V | 200-240V AC, 50-60Hz, 750W

Power ports: National standard | European standard | American standard | British standard, etc

Net weight: 98 kg

Dimensions (width, depth, height): 480 * 430 * 480

Protection level: IP30
