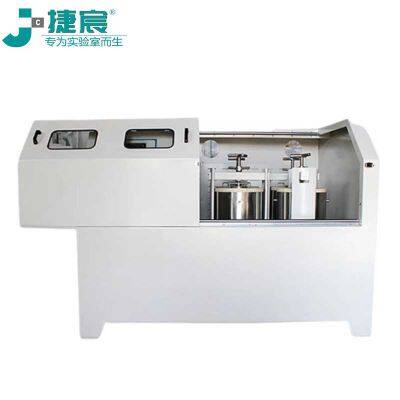

QM-2SP100 planetary ball mill (25L x 4 tanks)

Product Introduction

The vertical production planetary ball mill is a large-scale planetary ball mill designed and manufactured on the basis of the principle of small planetary ball mills. The production planetary ball mill is mainly suitable for mass grinding production by users.

application

Vertical production planetary ball mills are widely used in geological, mineral, metallurgical, electronic, building materials, ceramics, chemical, light industry, pharmaceutical, environmental protection and other departments. They are suitable for electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalysts, fluorescent powders, long afterglow luminescent powders, rare earth polishing powders, electronic glass powders, fuel cells, zinc oxide varistors, piezoelectric ceramics, nanomaterials, circular ceramic capacitors MLCC、 The production field of thermistors (PTC, NTC), ZnO varistors, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, Ni Zn ferrite, Mn Zn ferrite and other products.

Product Features

The equipment casing is processed by welding thick steel plates, which have high strength, impact resistance, deformation resistance, fine workmanship, and are sturdy and beautiful; The materials of the machined parts undergo strict heat treatment processes, using CNC machining technology. The gearbox body adopts a quasi sealed groove embedded structure, and the transmission gears use wear-resistant precision gears. The design of the frame and structural components fully considers resonance factors to ensure stable, safe, and reliable operation of the equipment under long-term high load conditions, and effectively achieve noise reduction during machine operation; The liquid oil self-lubricating device is designed with low noise, high strength, and equipped with a liquid oil level gauge for easy replacement. The supporting lifting and feeding devices are designed as an integrated whole, with the feeding device incorporating vibration screening and discharging technology. The operation is simple and easy, enabling easy and fast tank retrieval, unloading, and loading, reducing labor intensity and improving production efficiency. Adopting a microcomputer touch screen, it is easy to operate and has a simple and intuitive interface. It can achieve alternating control of forward and reverse rotation, and has timing and power-off memory functions.

Model: QM-2SP100

Specification: 100L

Can be equipped with ball milling jar specifications: 20-25L

Quantity: 4

Can be equipped with vacuum ball milling tank specification: 20L

Equipment power supply: 380V 50HZ

Motor power: 11KW

Equipment setting total time: 1-9999 (min)

Alternating running time: 1-999 (min)

Adjustable speed (revolution): 27-160 (rpm)

Adjustable speed (rotation): 40-240 (rpm)

Noise: ≤ 68db

Speed regulation method: Variable frequency speed regulation

Equipment weight: 1250kg

Equipment volume: 1750 × 1140 × 1330 (mm)
