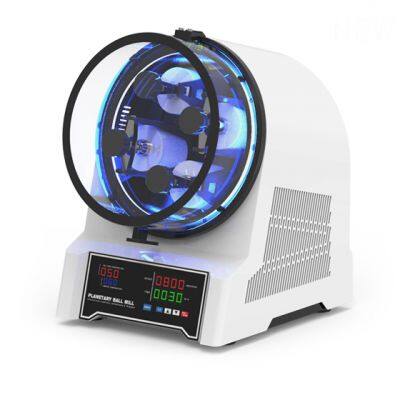

J-P400H Micro Planetary Ball Mill Horizontal Tank Type

The planetary ball mill J-P400H has a smaller appearance, with a width of only 300 * height of 420 * depth of 350mm. It adopts an ergonomic structure and personalized appearance design. The instrument can be placed on a desktop or glove box for use. The ball mill can rotate at 1000rpm and revolve at 500rpm, and can be used to place four ball mill cans with a volume of 100ml or less. The ball mill can be made of various materials, standard types, and vacuum types, suitable for dry grinding, wet grinding, and vacuum grinding. It adopts a simpler and more durable microcomputer digital control method, with functions such as continuous, intermittent, positive and negative alternation, timing, speed regulation, temperature monitoring and testing, high temperature protection, overload protection, etc. It uses a 10mm thick safety, sound insulation, and visual flip cover, circular LED ambient lighting, and stainless steel grinding room to meet the requirements of dust-free environment. non-magnetic process

Technical parameters:

Product Name: Micro planetary ball mill - horizontal tank type

Model: J-P400H

Processing principle: Impact force | Friction force | Gravity

Application sample characteristics: fine | medium low hardness | brittle | dry or low viscosity

Processing type: Crushing | Grinding | Mixing

Maximum injection size:<2 mm

Sample size range: 0.1-20 μ m

Maximum processing capacity: 400 ml

Maximum speed of ball milling jar: 1000 r/min

Transmission mode: European standard

Planetary disk space motion mode: planetary motion

Function: Continuous and intermittent operation | Alternating forward and reverse operation | Timing | Speed regulation | Power off memory | Emergency stop | Overload and dangerous operation protection | Temperature monitoring | High temperature protection

Additional features: LED lighting | Visual flip cover | Sound insulation | Heat dissipation | Stainless steel grinding chamber

Material of ball milling jar: tungsten carbide | zirconia | agate | stainless steel | MC nylon, etc. Optional

Number of ball milling jars: 4

Ball mill tank capacity: 100 ml

Grinding Ball Material: Tungsten Carbide | Zirconia | Agate | Stainless Steel, etc. Optional

Grinding method: dry grinding | wet grinding

Electrical description: 100-120V/200-240V AC, 50-60Hz, 150W

Power ports: National standard | European standard | American standard | British standard, etc

Net weight: 35 kg

Dimensions (width * depth * height): 300 * 350 * 420 mm

Protection level: IP65
