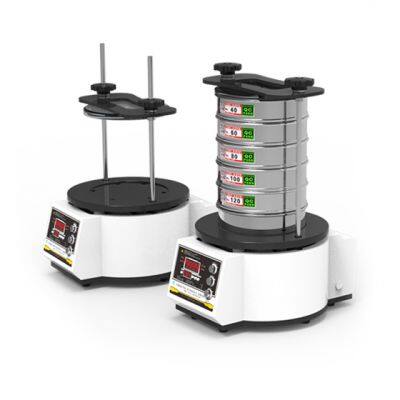

J-SD200 Dry Three Dimensional Vibration Screening Instrument

The digital high-frequency mechanical vibration screening instrument J-SD200 is dedicated to solving common screening tasks in laboratories, suitable for screening dry samples of 20g-3kg. The product follows the design concept of precision, efficiency, and * *, and is equipped with a time control panel to achieve continuous and intermittent screening and timing functions with constant amplitude. It also includes password lock screen protection and one click reset, making it easy to use, easy to operate, quiet and comfortable, safe and reliable.

Product Name: Dry 3D Vibration Screening Instrument

Model: J-SD200

Processing principle: High frequency three-dimensional parabolic motion

Application sample characteristics: powder like | granular | small block like | loose | suspended solids, etc

Processing type: particle size determination, separation, grading

Maximum load: 3 kg

Number of sieve layers: 1-8 layers

Maximum screening tower mass: 4 kg

Amplitude: 0.2-3 mm

Vibration frequency: 3000 times/minute

Screening particle size range: 20 μ m-125 mm

Maximum usable sieve diameter: 200mm

Maximum screening tower height: 510mm

Main functions: digital control | timing | continuous screening | intermittent screening

Additional features: Comfortable visual screen pressing plate

Screening method: dry type

Electrical description: 100-120V/200-240V AC, 50-60Hz, 200W

Power ports: National/European/American/British standards, etc

Net weight: 35 kg

Dimensions (width, thickness, height): 300 * 405 * 685mm

Protection level: IP65
