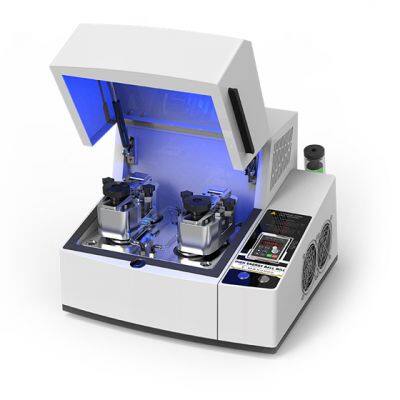

MAX2000 Nano High Energy Ball Mill

The MAX2000 ultra-high energy ball mill is a laboratory desktop nanoscale grinding equipment that is used by placing two ball milling tanks with a volume of 125ml or less. The high-speed circular motion at 2000 revolutions per minute generates enormous energy, allowing the sample to be quickly crushed, ground, or mixed, resulting in good consistency and repeatability of the sample; Equipped with a continuous water-cooled circulation cooling system and temperature monitoring system that can be used for both internal and external purposes, the instrument adopts frequency conversion control to achieve multiple functions such as timing, continuous and intermittent, and alternating positive and negative grinding. It has overload protection function and electromagnetic lock automatic flip cover;

Product Name: Nano High Energy Ball Mill

Model: MAX2000

Processing principle: Impact force | Friction force

Application sample characteristics: hard | medium low hardness | brittle | dry | moist | fibrous | viscous

Processing type: Mechanochemistry | Mechanical Alloy | Crushing | Mixing | Homogenization | Colloidal Grinding | Non magnetic Grinding

Suggested maximum injection size:<5 mm

Sample size range:<80 nm

Grinding method: dry grinding | wet grinding | vacuum grinding

Grinding platform (number of cans): 2

Movement mode: Horizontal high-frequency circular motion

Speed: 300-2000 r/min

Main functions: continuous operation | intermittent operation | alternating forward and reverse operation | timing | speed regulation | data storage | power-off memory | overload protection | temperature monitoring

Additional features: Quick fastening | Automatic electromagnetic lock flip cover

Crushing time setting: 99h: 99m: 99s

Ball milling jar material: stainless steel | hard steel | tungsten carbide | zirconia | polytetrafluoroethylene

Ball mill tank capacity: 80ml | 125ml

Grinding ball material: tungsten carbide | zirconia | agate | stainless steel

Grinding ball size: 1-30m optional

Material of ball milling jar seat: aluminum alloy

Work platform material: aluminum alloy

Electrical description: 100-120V | 200-240V AC, 50-60Hz, 1500W

Power ports: National standard | European standard | American standard | British standard, etc

Net weight: 128 kg

Size (width, depth, height): 520 * 520 * 380

Protection level: IP30
