Vacuum glove box C series

Stainless steel vacuum glove box (C series)

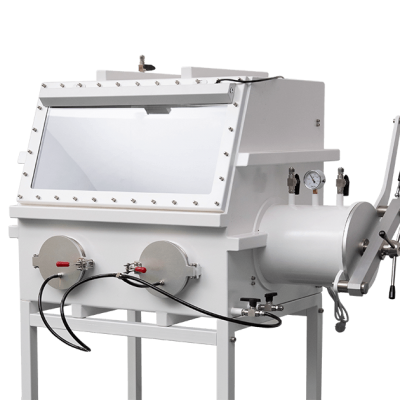

The jiechenlab C series stainless steel glove box consists of a main box that can be evacuated, a transition chamber that can be evacuated, 2 glove ports, a side door, an LED lighting fixture, 2 inlet and outlet ports, a vacuum pressure gauge, a power socket, and 2 KF25 backup interfaces on the back. By vacuuming and supplementing inert gas, the oxygen value inside the box can be reduced to meet various experimental and production process requirements. Suitable for major university laboratories, scientific research institutes, high-tech enterprises, etc;

Working principle

The working principle of the jiechenlab C series vacuum glove box is to evacuate the main box and then fill it with high-purity inert gas to reduce the water and oxygen levels inside the box. After repeated vacuuming and air replenishment, the water and oxygen levels can be less than 200PPM. (The specific value is affected by the number of operations and the purity of the inert gas)

The function of the transition chamber is that if it is necessary to transfer items inside or outside the box during the experiment, it can be done through the transition chamber, so as not to damage the low water oxygen atmosphere that has been replaced inside the main box.

application area

Mainly creating anaerobic and non humid environments for organic metal chemistry, organic synthesis, 3D printing, new material powder packaging, special anaerobic and hydrophobic chemical treatment, biomedical, electronic component processing, solar cell assembly, lithium battery materials and battery assembly experiments, catalyst treatment, pharmaceutical synthesis, nuclear industry, membrane industry, etc;

Product Features

1. Made of SUS 304 # stainless steel material, not affected by most experimental materials, corrosion-resistant, and rust free;

2. The box has high strength and can be evacuated to -0.1Mpa. The outside of the box is reinforced with reinforcing ribs to ensure its durability;

3. The window is made of highly transparent tempered glass, and the upper part of the window is equipped with LED lighting. During the experiment, the visual acuity is clear and there are no blind spots;

4. The interior of the box is equipped with a power socket, which is convenient for connecting experimental instruments such as spin coating machines and scales;

5. The inlet and outlet of the box adopt a quick plug type, which is convenient for connecting the trachea. It can also choose a pagoda head and has a ball valve switch;

Model VGB-1C VGB-3C VGB-4C

Size 600W * 450D * 420H 780W * 650D * 700H 1120W * 740D * 900H

Vacuum degree main box&transition chamber: -0.1Mpa

box

SUS304 stainless steel, thickness 3mm, inner surface: stainless steel wire drawing treatment

External surface: spray painted, white;

The window control box is equipped with 10mm thick tempered glass on the front, providing a wide viewing angle without any blind spots

Ball valve stainless steel ball valve, quick insert or pagoda head interface, one inlet and outlet respectively

Lighting without ultraviolet white light, installed above each glass window

Multi hole power sockets are installed inside the power box to meet the internal instrument needs of customers

A pair of 600mm long latex gloves

Reserved interface for KF25, the glove box can be upgraded at any time in the future

Transition cabin size: φ 210 * 260L, φ 240 * 260L, φ 385 * 400L

Side door manual door 300H * 260D manual door 350H * 300D manual door 450H * 350D

Options

Vacuum pump 2L/4L

Mobile stand, no desktop available for laboratory use

Fully automatic pressure controller

Domestic&Imported Water Oxygen Content Monitor

Fully automatic water oxygen content controller

Foot pressure controller

UV sterilization lamp

Oven&Refrigerator

Dust removal and cleaning system

Purification system H2O&O2 ≤ 0.1PPM
