New High Performance Intel 82580 PCIe x1 Gigabit SC Port MM Fiber Ethernet Lan Card

Specifications

LREC9240PF

New High Performance Intel 82580 PCIe x1 Gigabit SC Port MM  Fiber Ethernet Lan Card

Single-port Gigabit Ethernet adapter designed for multi-core processors and optimized for Virtualization & Unified Networking Environments

Designed for Multi-Core Processors

This adapter provides high-performing, Gigabit connectivity in a multi-core platform as well as in a virtualized environment. In a multi-core platform, the adapter supports technologies such as MSI-X, and Low Latency Interrupts that help accelerate data across the platform, improving application response times.

Optimized for Virtualization

The LR-LINK LREC9240PF  Server Adapter showcases a suite of hardware assists that improves overall system performance by lowering the I/O overhead in a virtualized environment. This optimizes CPU usage, reduces system latency, and improves I/O throughput.

Key Features

A high-performing 1000BASE-LX Single-mode Ethernet connections

Low power high performing bridgeless design supporting PCI Express* Gen 2.0 5 GT/s

Environmentally-friendly lead-free adapter

Hardware acceleration for TCP-IP and iSCSI

Hardware optimizations for virtualized servers

Reliable and proven Gigabit Ethernet technology from Intel Corp.

Based on the new Intel 82580 Gigabit Ethernet Controller,LREC9240PF Server Adapter is LR-LINK’s fourth generation of PCIe GbE adapter. This adapter provides a smaller footprint and lower power dissipation. In addition, the LREC9240PF Adapter offers advanced features, including support for multi-core processors and server virtualization, as well as a scalable PCI Express Gen2.0 interface.

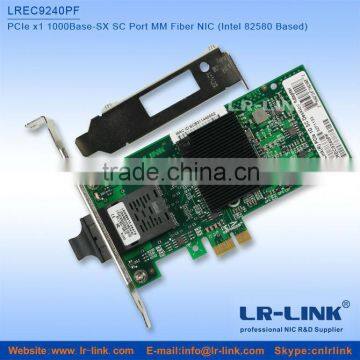

Product picture:

General Features

Intel® 82580 Gigabit Ethernet Controller with

PCI Express* V2.0 (5 GT/s) Support

Load balancing on multiple CPUs

Compatible with x4, x8, and x16 standard and low-profile PCI Express* slots

Multi-port design

Support for most network operating systems (NOS)

Intel® PROSet Utility for Windows* Device Manager

I/O Virtualization Features

MSI-X support

Low Latency Interrupts

Header Splits and Replication in Receive

Multiple Queues: 8 queues per port

Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities

Tx TCP segmentation offload (IPv4, IPv6)

Virtualization Features

VMDq

Advanced Packet Filtering

VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags

Manageability Features

Advanced filtering capabilities

Preboot eXecution Environment (PXE) Support

Simple Network Management Protocol (SNMP) and

Remote Network Monitoring (RMON) Statistic Counters

Wake-on-LAN support

iSCSI Boot

Watchdog Timer

IEEE 1588 precision time control protocol

Advanced Software Feature

Adapter fault tolerance (AFT)

Switch fault tolerance (SFT)

Adaptive load balancing (ALB)

IEEE 802.3ad (link aggregation control protocol)

Test switch configuration: Tested with major switch original equipment manufacturers (OEMs)

PCIe Hot Plug*/Active periphera; component interconnect (PCI)

IEEE 802.1Q* VLANs

IEEE 1588 Precision Time Control Protocol

IEEE 802.3 2005* flow control support

Tx/Rx IP,TCP& UDP checksum offloading(IPv4, IPv6) capabilities control protocol(TCP),user datagram protocol

(UDP), Internet protocol (IP)

TCP segmentation large send offload

MSI-X supports Multiple Independent Queues

IPv6 offloading — Checksum and segmentation capability extendedto new standard packet type

Adapter Product Features

Intel® PROSet Utility

Plug and play specification support

Intel® I/O Acceleration Technology (Intel® I/OAT)

Ships with full-height bracket installed; low-profile bracket included in package

Technical Features

Network Operating Systems (NOS) Software Support

Windows XP
Windows CE/5.0
Windows Server 2000
Windows 7 32-bit(64-bit)
Windows Vista 32-bit(64-bit)
Windows Server 2003 32-bit(64-bit)
Windows Server 2008 R2 32-bit(64-bit)
NetWare NetWare 5.0/5.1/6.0/
DOS
Novell ODI
Linux 2.4 series kernel and 2.6.x/3.x
FreeBSD with the 9.x kernel.
OpenUNIX 8.0 (Caldera), UnixWare 7.x
Sun Solaris x86

Order Information:

PS: The above details is just for reference, if there is any change, no prior notice .
