New Product 8 Discount Offer PCI Express x1 Gigabit Single SFP Fiber Port Network Card (Intel 82575EB Based)

LREC6220PF-SFP

New Product 8 Discount Offer PCI Express x1 Gigabit Single SFP Fiber Port Network Card (Intel 82575EB Based)

Overview:

The LR-LINK LREC6220PF-SFP is a high performance PCI Express multifunction network adapter for either standard or low profile slots running over a fiber-optic network environment. Based on Intel 82575EB controller.It is a 1000Base-SX PCI Express x1 fiber nic for desktop use by Shenzhen Lianrui Electronics CO.,LTD.

Industry-leading performance

The LR-LINK LREC6220PF-SFP Gigabit Ethernet PCI Express adapters solution is designed forhigh-end appliances. The performance is optimized so that system I/O is not the bottleneck in high- performance networking applications.

Reliability, Availability, Serviceability

The LREC6220PF-SFP enables fault-tolerant via teaming. Traffic from the failed port is routed through up to seven other members of the team.

LR-LINK LREC6220PF-SFP Gigabit Ethernet PCI Express adapters have an integrated hardware acceleration that performs TCP/UDP/IPchecksum offload and TCP segmentation. The host processing offloads accelerators frees CPU for application processing.

LREC6220PF-SFP is single SFP connector fiber adapter.It can be available to choose the MM or SM according to customers’ requirements.And The Intel 82575EB server controller,has the high performance,high stable,high quality and best compatible.It can compatible all the brand computers and fiber switches in market.It is the good solution for the high-performace FTTD applications.

The New SFP Port Network Card Advantages:

*  Use the Intel 82575EB server chipset,can support more fuctions

*  Comptaible all the OS

*  PCB 4 layer,1.5oz,4mil,more stable,longer using time,smaller resistance

*  Three line power : 3.3V/2.5V/1.0V,the directly power supply,the card will not be effected by the outside power flowing,more stable working enviroment

*  All use the good quality materials

*  Support PXE,WOL

*  Use the TI ,LT power controller,the best controller manufactures in the world,it can provide a stable working enviroment

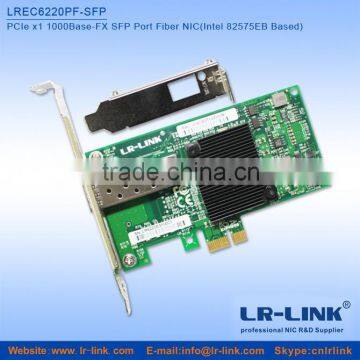

Pictures Showing:

Standard Features:

Host Interface standard support PCI Express 20a

High performance, reliability, and low power use in Intel 82575EB dual integrated MAC + PHY / SERDES chip controller

Independently Fiber Gigabit Ethernet channels support Gigabit Ethernet 1000Base-SX

Ultra deep packet buffer per channel lowers CPU utilization

Hardware acceleration that can offload tasks from the host processor. The controllers can offload TCP/UDP/IP checksum

calculations and TCP segmentation

Server class reliability, availability and performance features:
•Link Aggregation and Load Balancing:

•Switch dependent: 802.3ad (LACP), Generic Trunking ( GEC / FEC)

•Switch and NIC Independent

• Failover

Priority queuing – 802.1p layer 2 priority encoding

Virtual LANs –802.1q VLAN tagging

Jumbo Frame (16KB).

802.x flow control

Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (802.3z, Clause 30)

LEDs indicators for link/Activity/Speed status

Support PXE

Support WOL(Wake-on-LAN)

Technical Specifications:

Ordering Information:

PS: The above details are only for reference,if there are any changes,no inform will have.
