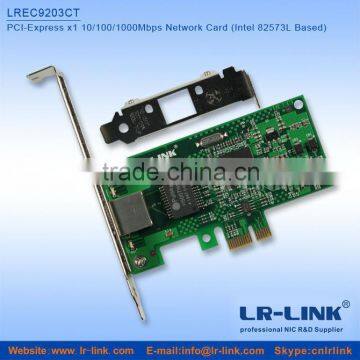

PCI-Express x1 10/100/1000Mbps Usb To Lan rj45 Adapter Network Card (Intel 82573L Based)

Copper Gigabit Ethernet Technical Specifications - (1000Base-T) Adapters:

IEEE Standard / Network topology:

Gigabit Ethernet, 1000Base-T
Fast Ethernet, 100Base-TX
Ethernet, 10Base-T

Full duplex / Simplex:

Support both Simplex & Full duplex operation in all operating speeds

Auto negotiation:

Auto-negotiation between Full duplex and simplex operations and between 10Mb/s 100Mb/s speeds and duplex 1000Mb/s

Data Transfer Rate:

1000 Mbit/s, 100 Mbit/s and 10 Mbits/sec in simplex mode per port
2000Mbit/s 200 and 20 Mbit/s in full duplex mode per port

Cables and Operating distance:

10Base-T Category 3, 4, or 5 maximum 100m
100Base-Tx Category 5 maximum 100m
1000Base-T Category 5E maximum 100m

Operating Systems Support

Operating system support:

DOS, Novell ODI

Windows 2000

Windows XP

Windows Server 2003 32-bit(64-bit)

Windows Vista 32-bit(64-bit)

Windows 7 32-bit(64-bit)

Windows 8 32-bit(64-bit)

Windows Server 2008 32-bit(64-bit)

Windows Server 2008 R2 32-bit(64-bit)

Windows Server 2012

Novell Netware 5.x,6.x

Linux 2.4 series kernel and 2.6.x ,3.x

FreeBSD 7.x and later

UnixWare / Open Unix 8

Sun Solaris x86

VMWare

General Technical Specifications

Interface Standard:

PCI Express Base Specification Revision 1.0

Number Of Interfaces:

1 port

PCI Express Card Type:

X1 Lane

PCI Connector:

X1 Lane

PCI Express Voltage:

+3.3V +-9%,

Controller: :

Intel: 82573

M/N

Description

LREC9203CT

PCI-Express x1 10/100/1000Mbps Network Card (Intel 82573L Based)
