Support For Diskless Intel 82540 Chipset 10/100/1000Mbps PCI Serial Port Card

Specifications

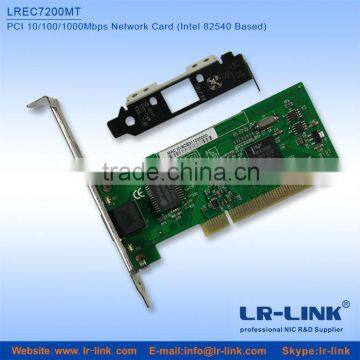

LREC7200MT

PCI 10/100/1000Mbps Network Card (Intel 82540 Based)

Features

Intel® 82540EM Gigabit Controller

Compatible with Fast Ethernet and Ethernet

PCI 2.2 32-bit 33/66 MHz

10/100/1000 Mbps

Category-5 Cabling

Interrupt Moderation

ACPI, WoL, PXE

SNMP/DMI, WfM

Meets IEEE 802.3ab technology

Advanced Cable Diagnostics

Support for many NOSs

Easy Desktop Migration to Gigabit Copper Performance

Now you can benefit from the Intel® PRO/1000 MT Desktop Adapters that maximize system performance and increase end-user productivity for mainstream PCs.

Next-generation desktops will feature high-bandwidth applications encompassing voice, data, streaming video,

video conferencing, and long distance storage area networks t will be hindered by Fast Ethernet technology. Fortunately, most networks are running over standard Category-5 cable that sup Gigabit speeds, allowing desktops to realize the full potential of high bandwidth applications.

The Intelligent Way to Connect

High performance and flexibility through 10/100/1000 auto-negotiation—systems that are currently running at 10 Mbps or 100 Mbps can be upgraded with the LREC7200MT Desktop Adapter now, whether Gigabit switching is currently available or not. According to the Gartner Group, the average life of a PC is three years1. By integrating an Intel®  PRO Gigabit Network Connection now, IT managers will save time, money and downtime when the network is upgraded

later because the LREC7200MT will automatically detect and run at the higher speed when it becomes available.

Easy, cost-effective migration to Gigabit Ethernet over existing Category-5 cabling—Category-5 cabling allows easy migration to faster networks and 10/100/1000Mbps flexibility to scale bandwidth as your network grows.

Lower support costs through advanced management capabilities—the LREC7200MT supports Wired for Management (WfM) 2.0, DMI 2.0, and SNMP for remote troubleshooting and management, as well as PXE 2.0 and WoL for remote boot and software installations.

Software also includes the Intel®  PROSet II Utility for easy configuration.

Specification

GENERAL

Connectors: RJ-45

IEEE Standard/Network Topology: 10BASE-T, 100BASE-TX, 1000BASE-T

Wiring: Cat-5, 4 pair

ADAPTER PRODUCT FEATURES

Intel® SingleDriver™ technology

Plug and Play Specification Support

Easy Installation, Intel® PROSet II Utility

Auto-negotiation, Full-duplex Capable

Bus Type

Bus Speed: PCI 2.2

Bus Speed: 32/33, 32/66

NETWORK MANAGEMENT

Wired for Management (WfM) Baseline v2.0

DMI 2.0 Support, WMI & SNMP-manageable

Offline Diagnostics

Intel® Boot Agent

ACPI Power Management

Wake on LAN*

ADVANCED SOFTWARE FEATURES

IEEE 802.1Q VLANs

IEEE 802.3x Flow Control

TCP Checksum Offload

IEEE 802.1p, Intel® Priority Packet II

TECHNICAL FEATURES

NOS SOFTWARE SUPPORT

Windows ME

Windows CE

Windows 98

Windows 98SE

Windows NT 4.0

Windows NT Terminal Server

Windows Server 2000

Windows XP 32-bit(64-bit)

Windows 7 32-bit(64-bit)

Windows Vista 32-bit(64-bit)

Windows Server 2003 32-bit(64-bit)

Windows Server 2008 32-bit(64-bit)

Windows Server 2008 R2 32-bit(64-bit)

MAC OS

Novell ODI

OS/2 Warp

SCO Open Server

Sun Solaris x86

OS Independent

DOS, Novell ODI

FreeBSD 4.X,5.X,6.X,7.X

NetWare ,NetWare5.0,5.1,6.0,6.5

Linux with 2.2.20 to 2.6.X kernels

OpenUNIX 8.0 (Caldera), UnixWare 7.x

Ordering Information:

PS: The above details is just for reference,if there is any change,no inform will have.
