2014 Hot Sale PCIe x1 SC Port Intel 82574 100FX MM Playstation Network Card

Specifications

2014 Hot Sale PCIe x1 SC Port Intel 82574 100FX  MM Playstation Network Card

Playstation Network Card Descriptions

LREC9030PF is a pci-e bus 100Mbps fiber network card developed by Shenzhen Lianrui Electronics CO.,LTD. With 1x9 optical transceiver module,it can be matched with different fiber connector or optical transceiver module with different transmission distance according to the requirement of users. The network card can offer users reliable fiber-optic link on fast ethernet internet , particularly it is fit for places where distance of accessing to POI beyond string Cat 5e (>100m).It can completely replace the networking structure of that Ethernet card with RJ45 port connects externally optical transceiver .It can provide users with reliable FTTH and FTTD solutions .Users can select the optical interface parameters (including connectors, single-mode / multi-mode fiber, working distance,etc) according to occasion.

High Performance Control,High performance Assurance

Use the Intel as major chipset controller and the Marvell photoelectric controller to supply high perforamce for network card.

Intel,Marvell companys,is one of the leadest Semiconductor, integrated electric communication products desing,rearching manufacture all over the world.

Professional Design,Cast Highly Stable Fiber Network

Strict wiring requiremtns,High standard isometric line walk line equidistant difference way,control the equilong in 5mil,improve the signal transfer quality,assure the fuctions.

Efficient high-power power management chipset to provide a safe, stable and reliable power supply for the network card.Good layout, the appropriate packaging, quality of materials used,the network card will with high performance  and stability. At the same time, make the product more beautiful, generous

Our Network Card Advantages
Use the 6 layer PCB,double copper thickness,5OZ heavy gold plate
optimize designation, improved the distribution line and integral network arrangement
Use the high power control
Use the USA Marvell original photoelectric controller
Improved the fuctions and quality

Key Features

plug and play

PCI-E X1 compliant

100M 1*9 moudle,SC connector,MM and SM available

compliant with IEEE 802.3z 1000Base-SX / 1000Base-LX Ethernet stardard

100Mbps fast ethernet ,Full duplex or half-duplex,reach 200Mbps in full duplex

Support IEEE 802.3x flow control

support IP Unicast broadcast and multicast address filtering mechanism
Support priority queue

Support IEEE 802.1Q VLAN tagging

Support IP multicast packet filterreduces host CPU use

Networking Protocol

IEEE 802.3Z 1000Base-SX/LX Ethernet standard

IEEE 802.3x flow control

IEEE 802.1q VLAN tagging

GVRP VLAN registration protocol

IEEE 802.1p priority control

PCI-E 1.0 complaint

ACPI 2.0 power manage fuctions

NOS Software Support

Windows 2000

Windows XP 32-bit(64-bit)

Windows Server 2003 32-bit(64-bit)

Windows Vista 32-bit(64-bit)

Windows 7 32-bit(64-bit)

Windows 8 32-bit(64-bit)

Windows Server 2008 32-bit(64-bit)

Windows Server 2008 R2 32-bit(64-bit)

Windows Server 2012 32-bit(64-bit)

DOS, Novell ODI

Novell Netware 5.x,6.x

Linux 2.4 series kernel and 2.6.x ,3.x

FreeBSD 7.x and later

UnixWare / OpenUnix 8

Sun Solaris x86

VMWare

Microsoft NT 3.51 / 4.0
Microsoft Windows for Workgroups 3.11
Microsoft Windows CE.NET 4.0 / 4.2
Microsoft Client for DOS
NDIS2/3/4/5 driver
ODI for DOS driver
32 bit ODI LAN driver

Wavelength & Distance

Order Information

PS: The above details is just for reference,if there is any change,no prior notice .

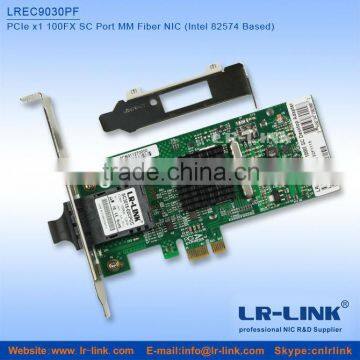

LREC9030PF Network Card Picture
