LREC9704HF-4SFP Intel 82580 PCI Expressx4 Gigabit SFP 4 port network card

LREC9704HF-4SFP  Intel 82580 PCI Expressx4 Gigabit SFP 4 port network card

Intel 82580 PCI Expressx4 Gigabit SFP 4 port network card

Quad Port PCI Express card
Intel 82580EB Intel ethernet Card
4-port Ethernet Card
Ethernet Card for server
3 year warranty

Specification:<ul>
4ΧSFP connector
Intel 82580EB  controller
PCI-Exress×4 compatibility with ×8 and ×16
Support large frame(high to 16 KB), link aggregation and outband load balancing
Each connector support 8 Virture Machine Device Queue(VMDQ)
Support MSI and MSI-X,furthest reduce I/O device interrupt
Support TCP/IP/UPD verify and TCP share segment task</ul>

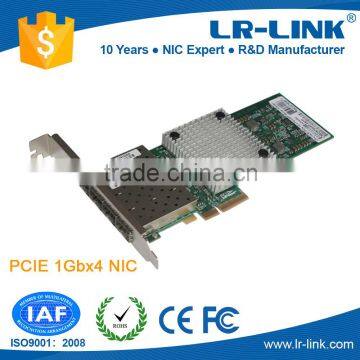

LREC9704HF-4SFP PCI Express x4 Quad Port SFP Gigabit Server Adapter (Intel 82580 Based)

Quad-port Gigabit Ethernet server adapter designed for multi-core processors and optimized for Virtualization & Unified Networking Environments

Key Features

Four high-performing 1000BASE-SX Ethernet connections

Low power high performing bridgeless design supporting PCI Express- Gen 2.0 5 GT/s

Environmentally-friendly lead-free adapter

Hardware acceleration for TCP-IP and iSCSI

Hardware optimizations for virtualized servers

Based on the new Intel 82580 Gigabit Ethernet Controller,

Descriptions

LREC9704HF-4SFP Server Adapter is LR-LINKs fourth generation of PCIe GbE adapter. This adapter showcases the industrys first fully integrated quad-port PCIe Gen2 GbE controller, providing a smaller footprint and lower power dissipation. In addition, the LREC9704HF-4SFP Server Adapter offers advanced features, including support for multi-core processors and server virtualization, as well as a scalable PCI Express Gen2.0 interface. LR-LINKs first eco-friendly halogen-free board com- bines low-power and cost for the best price/performance ratio in a quad-port solution available today.

Halogen-Free1

Working to create a more environmentally sustainable future,LR-LINK is pleased to introduce its first halogen-free Ethernet Server Adapter. The transition to halogen-free products is not government mandated, but driven by LR-LINKs goal to eliminate the use of environmentally sensitive materials. The move to halogen-free products marks another step in our continual march toward minimizing the environmental footprint of Intels products, processes, and technologies.

Designed for Multi-Core Processors

This quad-port adapter provides high-performing, multi-port Gigabit connectivity in a multi-core platform as well as in a virtualized environment. In a multi-core platform, the adapter supports technologies such as MSI-X, and Low Latency Interrupts that help accelerate data across the platform, improving application response times.

The I/O technologies on a multi-core platform make use of the multiple queues and multiple interrupt vectors available on the network controller. These queues and interrupt vectors help in load balancing the data and interrupts amongst themselves in order to lower the load on the processors and improve overall system performance. For example, depending upon the latency sensitivity of the data, the low latency interrupts feature can bypass the time interval for specific TCP ports or for flagged packets to give certain types of data streams the least amount of latency to the application.

Intel I/O Acceleration Technology (Intel I/OAT) is a suite of features that improves data acceleration across the platform, from networking devices to the chipset and processors, which helps to improve system performance and application response times. The different features include MSI-X, Low-Latency Interrupts, Receive Side Scaling (RSS), and others. MSI-X helps in load-balancing I/O interrupts across multiple processor cores, and Low Latency Interrupts can provide certain data streams a non-modulated path directly to the application. RSS directs the interrupts to a specific processor core based on the applications address.

Support for iSCSI

LR-LINK LREC9704HF-4SFP server adapters with native iSCSI initiators built into Microsoft Windows, Linux, and VMware ESX platforms provide a simple, dependable, cost-effective way to connectto LANs and iSCSI SANs. These native initiators are broadly tested using multiple generations of operating systems, storage systems, and OS tools to help ensure reliability and ease of use. Standardizing on Intel Ethernet server adapters for iSCSI allows administrators to use a single initiator, TCP/IP stack, and set of management tools and IT policies. In addition, the LR-LINK LREC9704HF-4SFP server adapter includes a number of hardware features designed to accelerate iSCSI traffic and enhance data processing. For example, TCP segmentation offload, Receive side coalescing (RSC), and checksum offload capabilities help reduce processor utilization, increase throughput, and deliver exceptional iSCSI performance. The adapters are designed to flexibly scale workloads across multi-core processor Cbased systems. Finally, using native OS initiators, an LR-LINK LREC9704HF-4SFP Server Adapter enables support for the CRC-32 digest instruction set included in the Intel Xeon processor 5500 series, which improves transmission reliablity and thus delivers an enterprise class iSCSI solution for the IT customer.

Optimized for Virtualization

The LR-LINK LREC9704HF-4SFP Server Adapter showcases a suite of hardware assists that improves overall system performance by lowering the I/O overhead in a virtualized environment. This optimizes CPU usage, reduces system latency, and improves I/O throughput. These features include:

Virtual Machine Device Queues (VMDq)

Intel I/O Acceleration Technology (Intel I/OAT)

Virtual Machine Device queues (VMDq)

VMDq reduces I/O overhead on the hypervisor in a virtualized server by performing data sorting and coalescing in the network silicon. VMDq technology makes use of multiple queues in the network controller. As data packets enter the network adapter, they are sorted, and packets traveling to the same destination (or virtual machine) get grouped together in a single queue. The packets are then sent to the hypervisor, which directs them to their respective virtual machines. Relieving the hypervisor of packet filtering and sorting improves overall CPU usage and throughput levels.

Reliable Performance

The server adapter includes a number of advanced features that enable it to provide industry-leading quad-port 1GbE performance and reliability.

PCIe- v2.0 (5GT/s)

PCIe v2.0(5GT/s) support enables customers to take full advantage of the 1GbE by providing a maximum of 2.0 Gbps bidirectional throughput per port on a single quad-port card.

For todays demanding virtualized data center environments, the new LR-LINK LREC9704HF-4SFP Server Adapter delivers ultimate flexibility and scalability.
