Hot Sell Support FCoE PCIe x4 Dual Port SFP Gigabit Intel i350AM2 PCI-E Express Network Card

LREC9712HF-2SFP

Hot Sell Support FCoE PCIe x4 Dual Port SFP Gigabit Intel i350AM2 PCI-E Express Network Card

dual-port Gigabit Ethernet server adapters designed with performance enhancing features and new power management technologies

Key Features

*  Halogen-free dual-port Gigabit Ethernet adapters with fiber interface options

*  Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption

*  Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports

*  Scalable iSCSI performance delivering cost-effective SAN connectivity

*  High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s

*  Reliable and proven Gigabit Ethernet technology from Intel Corporation

Overview

The new LREC9712HF-2SFP builds on Intel’s history of excellence in Ethernet products. Intel continues its market leadership with this new generation of PCIe* GbE network adapters. Built with the bridgeless Intel® Ethernet Controller I350, these adapters represent the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center by introducing new levels of performance through industry-leading enhancements for both virtualized and iSCSI Unified Networking environments.This new family of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).

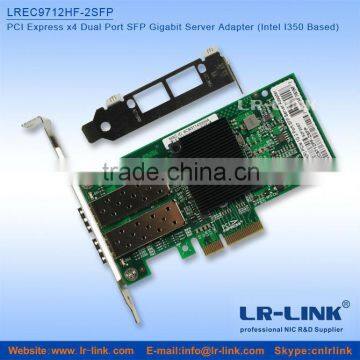

Network Card Pictures Showing

Intel pci-e express network card General Features

Intel® Ethernet Controller I350

With PCI Express* V2.1 (5 GT/s) Support

Low-Profile and Standard height full

Ethernet Features

IEEE* 802.3 auto-negotiation

1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant

Integrated PHY for 10/100/1000 Mb/s for multispeed, full, and half-duplex

Automatic cross-over detection function (MDI/MDI-X)

IEEE 1588 protocol and 802.1AS implementation

Power Management and Efficiency

<1W S0-Max (state) 1000BASE-T Active 90oC (mode)

<400mW S0-Typ (state) 100BASE-T Active (mode)

IEEE802.3az - Energy Efficient Ethernet (EEE)

DMA Coalescing

Smart Power Down (SPD) at S0 no link / Sx no link

Full wake up support

ACPI register set and power down functionality supporting D0 and D3 states

MAC Power Management controls

Low Power Link Up - Link Speed Control

Power Management Protocol Offload (Proxying)

Latency Tolerance Reporting (LTR)

I/O Virtualization Features

Eight transmit (Tx) and receive (Rx) queue pairs per port

Support for PCI-SIG SR-IOV specification

Rx/Tx Round-Robin Scheduling

Traffic Isolation

Traffic Steering

VM to VM Packet forwarding (Packet Loopback)

MAC and VLAN anti-spoofing

Malicious driver detection

Storm control

Independent Function Level Reset (FLR) for Physical and Virtual Functions

IEEE 802.1q advanced packet filtering

Mirroring rules

VF Promiscuous modes

Stateless Offloads/Performance Features

TCP/UDP, IPv4 checksum offloads (Rx/ Tx/Large-send); Extended Tx descriptors for more offload capabilities

IPv6 support for IP/TCP and IP/UDP receive checksum offload

Tx TCP segmentation offload (IPv4, IPv6)

Interrupt throttling control

Legacy and Message Signal Interrupt (MSI) Modes

Message Signal Interrupt Extension (MSI-X)

Intelligent interrupt generation

Receive Side Scaling (RSS) for Windows environment

Support for packets up to 9.5K Bytes ( Jumbo Frames)

Low Latency Interrupts

PCIe v2.1 TLP Processing Hint Requester

Descriptor ring management hardware for Transmit and Receive

Remote Boot Options

Preboot eXecution Environment (PXE) flash interface support

Intel® Ethernet iSCSI Remote Boot for Windows, Linux, and VMware

Intel Boot Agent software:

Linux boot via PXE or BOOTP, Windows* Deployment Services, or UEFI

Manageability Features

Management Component Transport Protocol (MCTP)

Firmware Based Thermal Management

IEEE 802.3 MII Management Interface

MAC/PHY Control and Status

Watchdog timer

Extended error reporting

Controller Memory Protection

Vital Product Data (VPD) Support

Adapter Product Features

I350-F2 Server Adapter Support Plug and play specification

Intel® I/O Acceleration Technology (Intel® I/OAT)

Ships with full-height bracket installed; low-profile bracket included in package
