stock 1x LC 1000Base-LX SM pci types of lan card

LREC7210PF-LX

PCI 1000Base-LX SM Fiber NIC (1x LC Intel 82545EB Based)

Product Features:

*  Support for most NOSs, Enables widespread deployment

*  INTEL gigabit SingleDriver technolog, Common driver suite for Gigabit Ethernet reduces installation Complexity

*  plug and play

*  32 bit PCI date transfer bus,compliant with PCI 2.2

* 6 layer PCB, double copper thickness,5OZ heavy gold plate to improve the working stability

* 1000Mbps fiber module,LC connector,MM or SM available

*  Run the speed of 66MHz 32bit PCI bus to reach higher 1000BASE-LX and 1000BASE-SX fuctions

*  1000Mbps fast ethernet ,Full duplex or half-duplex operation,reach 2000Mbps in full duplex

*  Support IEEE 802.3x flow control

*  Support IP Unicast broadcast and multicast address filtering mechanism Support priority queue *  Support IEEE 802.1Q VLAN tagging Support IP multicast packet filterreduces host CPU use *  Support high density server rack installation type of optional ultra-thin stents

*  Support many network operating system

High Performance Control,High performance Assurance:

Intel® 82545EB Gigabit Controller,provides high performance, reliability, and low power use ina single integrated Gigabit Ethernet controller chip.

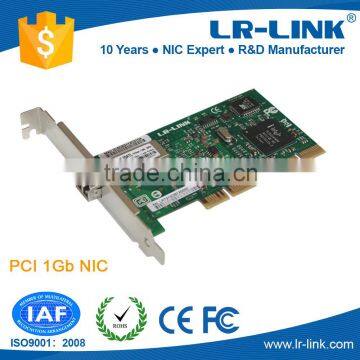

Product picture:

Our advantages--Professional Design,Cast Highly Stable Fiber Network:

Strict wiring requiremtns,High standard isometric line walk line equidistant difference way,control the equilong in 5mil,improve the signal transfer quality,assure the fuctions.

Efficient high-power power management chipset to provide a safe, stable and reliable power supply for the network card.Good layout, the appropriate packaging, quality of materials used,the network card will with high performance and stability. At the same time, make the product more beautiful, generous

The features and benefits is as follows:

Remote Management Support(WfM,RIS,SNMP/DMI), Reduces support costs with remote management based on industry-wide standards

Support IEEE 802.3ab stardard,support the normal gigabit Ethernet internet stardard

Full-height and low profile, screw-on brackets included with each adapter, for installation in high-density 1U and 2U servers
Interrupt Moderation, Delivers increased performance while significantly reducing CPU utilization
Large Send Off-load/TCP Segmentation Off-load, which enables wire speed performance with low CPU utilization

Supply switch device for fault tolerance and checking, use for checking compliant,extent normal working time.

Wavelength and distance:

Ordering Information:

Corporate image:

The first brand of network card market of China

The full series network card professional development and the manufacturer

Foreign network products OEM preferred manufacturer in China

System integrators network card select preferred suppliers

China's military enterprise optical fiber to the desktop well-known brands

Optical fiber to the desktop brand China disciplinary system

The full series card professional ODM&OEM cooperation manufacturer

Professional achievement of excellence quality achievements of the future

Certificate Showing:
