PCI-Express x1 10/100/1000Mbps RTL8111C Lan Card (RTL8111C Based)

Specifications

LREC9231MT

PCI-Express x1 10/100/1000Mbps RTL8111C Lan Card (RTL8111C Based)

Description:

LREC9231MT Gigabit Ethernet card combines a triple-speed IEEE 802.3 compliant Media Access Controller (MAC) with a triple-speed Ethernet transceiver, PCI Express bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology, the LREC9231MT offers high-speed transmission over CAT 5 UTP cable or CAT 3 UTP (10Mbps only) cable. Functions such as Crossover Detection & Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds.

The LREC9231MT is compliant with the IEEE 802.3u specification for 10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet. It also supports an auxiliary power auto-detect function, and will auto-configure related bits of the PCI power management registers in PCI configuration space.

Advanced Configuration Power management Interface (ACPI)—power management for modern operating systems that are capable of Operating System-directed Power Management (OSPM)—is supported to achieve the most efficient power management possible. PCI MSI (Message Signaled Interrupt) and MSI-X are also supported.

In addition to the ACPI feature, remote wake-up (including AMD Magic Packet™ and Microsoft® Wake-up frame) is supported in both ACPI and APM (Advanced Power Management) environments. To support WOL from a deep power down state (e.g., D3cold, i.e. main power is off and only auxiliary exists), the auxiliary power source must be able to provide the needed power for the LREC9231MT.

The LREC9231MT is fully compliant with Microsoft® NDIS5, NDIS6(IPv4, IPv6, TCP, UDP) Checksum and Segmentation Task-offload(Large send and Giant send) features, and supports IEEE 802 IP Layer 2 priority encoding and IEEE 802.1Q Virtual bridged Local Area Network (VLAN). The above features contribute to lowering CPU utilization, especially benefiting performance when in operation on a network server.

The LREC9231MT supports Receive Side Scaling (RSS) to hash incoming TCP connections and load-balance received data processing across multiple CPUs. RSS improves the number of transactions per second and number of connections per second, for increased network throughput.

The device also features inter-connect PCI Express technology. PCI Express is a high-bandwidth, low pin count, serial, interconnect technology that offers significant improvements in performance over conventional PCI and also maintains software compatibility with existing PCI infrastructure. The device embeds an adaptive equalizer in the PCIe PHY for ease of system integration and excellent link quality. The equalizer enables the length of the PCB traces to reach 40 inches.

The LREC9231MT is suitable for multiple market segments and emerging applications, such as desktop, mobile, workstation, server, communications platforms, and embedded applications.

Features:

Integrated 10/100/1000 transceiver

Auto-Negotiation with Next Page capability

Supports PCI Express™ 1.1

Supports pair swap/polarity/skew correction

Crossover Detection & & Auto-Correction

Wake-on-LAN and remote wake-up support

Microsoft® NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send and Giant send) support

Supports Full Duplex flow control (IEEE 802.3x)

Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Supports IEEE 802.1P Layer 2 Priority Encoding

Supports IEEE 802.1Q VLAN tagging

Serial EEPROM

Transmit/Receive on-chip buffer support

Supports power down/link down power saving

Supports PCI MSI (Message Signaled Interrupt) and MSI-X

Supports Receive-Side Scaling (RSS)

64-pin QFN package (Green package)

Embeds an adaptive equalizer in PCI express PHY (PCB traces to reach 40 inches)

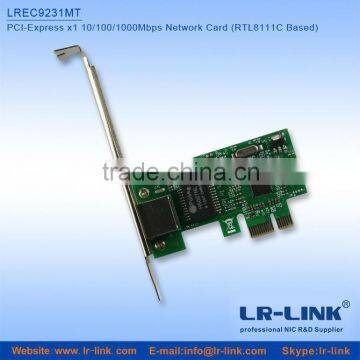

Product Picture:

Networking Protocol:

*Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

*Supports IEEE 802.1P Layer 2 Priority Encoding

*Supports IEEE 802.1Q VLAN tagging

NOS Software Support:

* Microsoft Windows 7

*Microsoft Windows Vista (32 & 64 bit)

*Microsoft Windows XP (32 & 64 bit)

*Microsoft Windows CE

*Microsoft Windows NT

*Microsoft Windows 2000 Server

*Microsoft Windows Server 2003 (32 & 64 bit)

*SCO UnixWare 7.x

*Open Unix 8.0

*Novell ODI

*Novell Netware

*SUSE Linux Enterprise Server 9.0

*Red Hat Enterprise Linux 4.0 Linux

*FreeBSD

*Sun Solaris8

*Microsoft DOS

*VMWare ESX

Order information:
