Special Offer Intel I350AM2 Chip PCI Express x4 Dual Port SFP Gigabit Adapter Card Types

LREC9712HF-2SFP

PCI Express x4 Dual Port SFP Gigabit Server Adapter (Intel I350 Based)

DUAL-port Gigabit Ethernet server adapters designed with performance enhancing features and new power management technologies

LREC9712HF-2SFP Adapter Card Types Key Features:

*  Halogen-free dual-port Gigabit Ethernet adapters with fiber interface options

*  Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption

*  Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports

*  Scalable iSCSI performance delivering cost-effective SAN connectivity

*  High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s

*  Reliable and proven Gigabit Ethernet technology from Intel Corporation

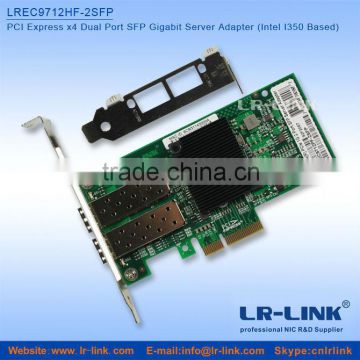

LREC9712HF-2SFP Adapter Card Types pictures:

Overview:

The new LREC9712HF-2SFP adapter card types builds on Intel’s history of excellence in Ethernet products. Intel continues its market leadership with this new generation of PCIe* GbE network adapters. Built with the bridgeless Intel® Ethernet Controller I350, these adapters represent the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center by introducing new levels of performance through industry-leading enhancements for both virtualized and iSCSI Unified Networking environments.This new family of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).

General Features:

Intel® Ethernet Controller I350

With PCI Express* V2.1 (5 GT/s) Support

adapter card types support Low-Profile and Standard height full

Ethernet Features:

 Adapter card types Support IEEE* 802.3 auto-negotiation

1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant

Integrated PHY for 10/100/1000 Mb/s for multispeed, full, and half-duplex

Automatic cross-over detection function (MDI/MDI-X)

IEEE 1588 protocol and 802.1AS implementation

I/O Virtualization Features:

Eight transmit (Tx) and receive (Rx) queue pairs per port

Rx/Tx Round-Robin Scheduling

VM to VM Packet forwarding (Packet Loopback)

MAC and VLAN anti-spoofing

Malicious driver detection

Storm control

Independent Function Level Reset (FLR) for Physical and Virtual Functions

IEEE 802.1q advanced packet filtering

Mirroring rules

VF Promiscuous modes

Remote Boot Options:

Preboot eXecution Environment (PXE) flash interface support

Intel® Ethernet iSCSI Remote Boot for Windows, Linux, and VMware

Intel Boot Agent software:

Linux boot via PXE or BOOTP, Windows* Deployment Services, or UEFI

Manageability Features:

Management Component Transport Protocol (MCTP)

Firmware Based Thermal Management

IEEE 802.3 MII Management Interface

MAC/PHY Control and Status

Watchdog timer

Extended error reporting

Controller Memory Protection

Vital Product Data (VPD) Support

Adapter Card Types Product Features:

Plug and play specification support

Intel® I/O Acceleration Technology (Intel® I/OAT)

Ships with full-height bracket installed; low-profile bracket included in package
