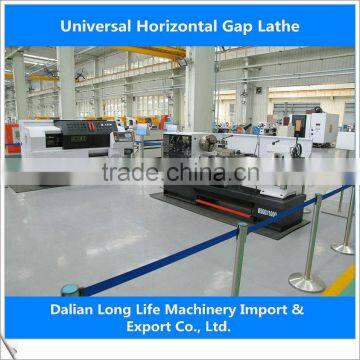

C62 series universal horizontal gap lathe machine cw6280e Quality Choice
- Dalian/Tianjing/Shanghai/Qingdao China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
CW series Large Horizontal GAP Lathe
-
CDL6241x1000 high speed universal turning lathe for sale
-
Large Horizontal Universal Lathe with 2000kgs Load Capacity
-
CDE6266 Series Economic Conventional Lathe with Gap
-
Large Horizontal Lathe with Gap Hot-sale CW6280E
-
CW6280Ex5000 Horizontal Lathe with Large Spindle Bore
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 320~1000mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CDS(CE) CW CDE CDL lathe machine | |
| Voltage | Customer's Requirement | Power(W) | 5.5/7.5/11/15kW | |
| Dimension(L*W*H) | depends | Weight | depends | |
| Certification | CE; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
horizontal gap lathe machine Technical Data
1. It can be used for machine inner circle, outer circle, and end & head surface, taper surface.
2. Gap lathe can process the deformation parts.
3. Function includes the drilling and reaming. Metric, inch, diametrical pitch, module thread.
4. The bed is made of high-grade cast iron.
5. The bed is undergoing surface quenching, the hardness can be HRC50.
5. The noise can be under 83(A).
6. Guide way: High-frequency quenching (hardness HRC50)
Item | CDE6240A | CDE6250A | CDE6266A |
Max. swing over bed (mm) | Φ400 | Φ500 | Φ660 |
Max. swing over carriage (mm) | Φ220 | Φ290 | Φ430 |
Max. swing over gap (mm) | Φ700 | Φ760 | Φ910 |
Max. length of work piece(mm) | 750/1000/1500/2000/3000 | ||
Width of guide way (mm) | 394 | ||
Dia. of spindle bore (mm) | Φ 52 | ||
Item | CDS6240B CDS6250B CDS6256B CDS6266B | CDS6276B | CDS6240C CDS6250C CDS6256C CDS6266C | CDS6276C | |
Max. swing over bed(mm) | Φ400/500/560/660 | Φ760 | Φ400/500/560/660 | Φ760 | |
Max. swing over carriage(mm) | Φ230/290/350/440/540 | ||||
Max. swing over gap (mm) | Φ700/760/780/870/965 | ||||
Width of gap(mm) | 250 | ||||
Max. length of workpiece (mm) | 1000/1500/2000/3000 | ||||
Width of guide way (mm) | 394 | ||||
Spindle nose | D8 | ||||
Spindle speed (rpm) | 26~2000 | 23~1800 | 26~1700 | 23~1530 | |
Dia. of spindle bore (mm) | Φ 82 | Φ 105 | |||
Item | CW6263E | CW6280E | CW62100E | |
Max. swing over bed (mm) | Φ 630 | Φ 800 | Φ 1000 | |
Max. swing over carriage (mm) | 350 | 520 | 720 | |
Center distance (mm) | 750/1000/1500/2000/3000/4000/5000/6000 | |||
Width of gap (mm) | 320 | |||
Swing over gap (mm) | 800 | 1000 | 1230 | |
Width of guide way (mm) | 550 | |||
Spindle bore diameter (mm) | 105/OP: 130 | |||
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Delivery Time:
- Normally, 30~90 days, however, different sizes of machines, delivery time will be different, pls consult for exact machine.
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
