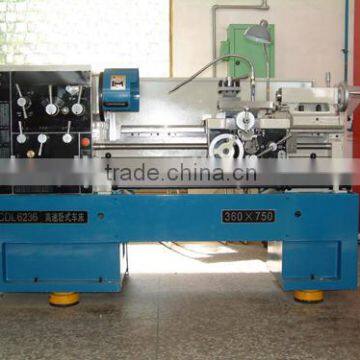

CDL6236x1500 china high speed small turning lathe
- 100 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
You May Like
-
CDL6241x1500 Light duty high speed universal metal lathe machine
-
CDL6246 High-speed Bench Lathe Espeically for Ship Repair
-
CDL SeriesHigh-precision Universal Lathe
-
CDS6232 CE small manual bench lathe machine price
-
CDE Series Universal Horizontal Lathe without CE
-
Lathe/Machine Tool/ Conventional Lathe /Engine Lathe/Universal Lathe/Metal Lathe
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 360mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CDL6236x1500 small turning lathe | |
| Voltage | 220V 380V 400V 415V 440V 480V | Power(W) | 3/4.5kW | |
| Dimension(L*W*H) | 2980x1090x2000mm | Weight | 1593kgs | |
| Certification | ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CDL6236x1500 small turning lathe
- Standard: spindle head is C6, Spindle hole: Φ48 mm
- Spindle head is D6, spindle hole: Φ52 mm;
- Guide rail width:300mm;
- Guide rail hardness:HRC50, Depth1.5mm;
- Hardened and ground guide ways;
- Maximum load capacity between two centers: 300kg
- Standard: the lathe is equipped with left-handed wheel;
- Right-handed wheel shall be informed specially when placing order;
- Three boxes are all self inside lubricating;
- Machine tool bed box are non-clutch;
- CE Certificate is not provided;
Specifications | Unit | Parameter |
Max swing over bed | mm | 360 |
Max swing over carriage | mm | 180 |
Center distance | mm | 1500 |
Max swing in gap | mm | 590 |
Width of bed | mm | 300 |
Spindle nose |
| C6/D6 |
Spindle bore | mm | 48/52 |
Taper of spindle bore |
| M6 |
Spindle speeds | rpm | 32~2000(12 speed) |
Range of inch threads | TPI | 2~56 |
Range of metric threads | mm | 0.5~14 |
Range of module threads | mm | 0.5~14 |
Range of Di metrical pitch thread | D.P | 2~56 |
Longitudinal feed | mm/rev | 0.06~0.82 (0.002"-0.032"/r) |
Cross feed | mm/rev | 0.017~0.242 (0.007"~0.0095"/r) |
Lead screw diameter | mm | 36 |
Pitch of lead screw | mm | 6 |
Taper of tailstock quill |
| M4 |
Travel of tailstock quill | mm | 150 |
Diameter of tailstock quill | mm | 60 |
Power of main motor | kW | 3/4.5 (4/6HP) |
Power of coolant motor | W | 90W(0.125HP) |
Net weight | kg | 1593 |
Gross weight | kg | 1893 |
WOODEN CASES STEEL PALLET (L×W×H) | mm | 2980×1090×2000 2850×1100×1780 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Delivery Time:
- Normally, 30~60 days, however, different sizes of machines, delivery time will be different, pls consult for exact machine.
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
