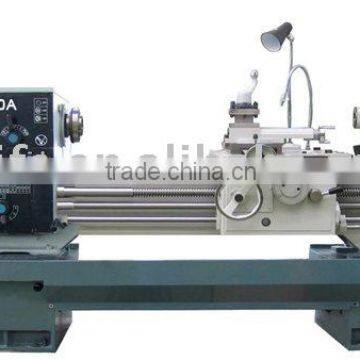

CE Certified Conventional Horizontal Lathe
- Dalian China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 760mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CDS6240/50/56/66/76B CDS6240/50/56/66/76BC | |
| Voltage | 220V 380V 400V 440V | Certification | CE Certificate; ISO9001:2008; GB/T19001:2008 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CDS Lathe Technical Specifications
To go through CE certificate of TUV Rheinland, Germany & CQC, China
It can machine inner circle, outer circle, and end and head surface, taper surface. Gap lathe can process the deformation parts. Function is including the drilling and reaming.
Thread: Metric, inch, diametrical pitch, module thread
The bed is made of high-grade cast iron;
Item | CDS6240/50/56/66/76B | CDS6240/50/56/66/76C | |||
Max. swing over bed | 400/500/560/660/760mm | ||||
Max. swing over carriage | 230/290/350/440/540mm | ||||
Max. swing over gap | 700/760/780/870/965mm | ||||
Width of gap | 250mm | ||||
Max. length of work piece | 1000/1500/2000/3000mm | ||||
Width of guide way | 394mm | ||||
Spindle nose | D8 | ||||
Spindle speed | 26-2000rpm | 23-1800rpm | 26-1700rpm | 23-1530rpm | |
Dia. of spindle bore | 82mm | 105mm | |||
Taper of spindle bore | 90/1:20 | 110/1:20 | |||
Longitudinal feed | 0.044-1.48mm/rev | ||||
Cross feed | 0.022-0.74mm/rev | ||||
Metric thread | 0.35-80mm(53 or 77) | ||||
Inch thread | 7/16-80tpi(47) | ||||
Module thread | 0.2-40mm(45 or 66) | ||||
Diametrical pitch thread | 7/8-160 DP (42) | ||||
Max. travel of cross slide | 348/348/348/355/355mm | ||||
Travel of top slide | 150mm | ||||
Travel of tailstock quill | 150mm | ||||
Diameter of tailstock quill | 75mm | ||||
Taper bore of tailstock quill | M5 | ||||
Main motor power | 10HP(7.5kW)/15HP(11kW.OPTIONAL) | ||||
Packing & Weight | 1000mm | Wooden case(mm):2850×1150×1900 Metal pallet(mm):2780×1120×1800 | |||
N.M.(kgs):2100/2150/2200G.W.(kgs):2670/2810/2860 | |||||
1500mm | Wooden case(mm):3350×1150×1900 Metal pallet(mm):3280×1120×1800 | ||||
N.M.(kgs):2150/2200/2250 G.W.(kgs):2950/3000/3050 | |||||
2000mm | Wooden case(mm):3850×1150×1900 Metal pallet(mm):3780×1120×1800 | ||||
N.M.(kgs):2260/2310/2360/2600 G.W.(kgs):3170/3220/3270/3800 | |||||
3000mm | Wooden case(mm):4850×1150×1900 Metal pallet(mm):4780×1120×1800 | ||||
N.M.(kgs):3030/3080/3150/2800 G.W.(kgs):4010/4060/4110/4250 | |||||
