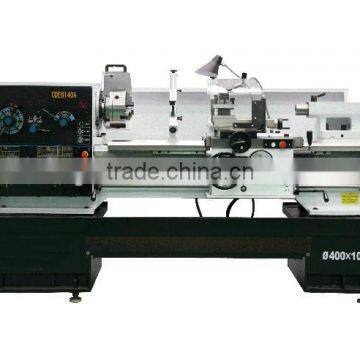

CDE6240x2000 Manual Horizontal Lathe

FOB Price

USD $5,953 - $10,498 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Manual
Max. Swing Diameter	400mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	CDE6240Ax2000
Voltage	220V 380V 400V 415V 440V 480V	Power(W)	7.5/11kW
Certification	ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

CDE6240x2000 Lathe Machine Specification

Machine Features:

Spindle nose: C6-type (No D-type spindle nose)
Chucktype: Direct-coupled;
New improved direct-coupled 3-jaw, 4-jaw chuck;
Guide rail width: 394mm;
Guide rail hardness: HRC50,Depth 1.5mm
Max load capacity between two centers: 500kg;
Provide left and right wheel,
Apron with rapid shift handle in longitudinal and cross direction;
Special indication is required iftailstock sleeve is with a scale;
Mechanical clutch is used for such lathe. No foot brake, No electrical cabinet;
The precision can reach up to IT7 level; the surface roughness can be up to 1.6 grade;

Main Usage:

It can machine inner circle, outer circle, and end and head surface, taper surface of Steel, cast iron, non-metal material.
Its Gap can process the deformation parts.
Function is including the drilling and reaming.
Metric, inch, diametrical pitch, module thread;

Specifications	Unit	Parameter
Max. swing over bed	mm	400
Max. swing over carriage	mm	220
Max. swing over gap	mm	700
Width of guide way	mm	394
Dia. of spindle bore	mm	52
Distance between centers	mm	2000
Taper of center sleeve		Morse No.6
Spindle speed	rpm	11~1400/22
Longitudinal feed	mm/rev	0.035~2.842
Cross feed	mm/rev	0.009~0.804
Metric thread	mm	0.5~240(66)
Inch thread	tpi	80~1/4(49)
Module thread	mm	0.25~120(57)
Diametrical pitch thread	DP	160~7~16 (50)
Section of tool shank	mm	25×25
Travel of top slide	mm	150
Max. travel of cross slide	mm	348
Pitch of longitudinal lead screw	mm	12
Travel of tailstock center sleeve	mm	150
Diameter of tailstock center sleeve	mm	75
Taper of tailstock center sleeve	Morse	No.5
Main motor power	kW	7.5(50Hz)/5.5 (60Hz)
Wooden case/Steel pallet	mm	4950×1150×1900 4830×1120×1610
Gross/net weight	kg	3095/2380

FREE STANDARD ACCESSORIES

Name	Size
3-jaw chuck	Φ250 mm K11250C/C6(For CDE6240A)
Steady rest	Φ30~Φ160(For CDE6240A)
Follow rest	Φ20~Φ80(For CDE6240A)
V-belt	B2210 (For CDE6240A 50HZ)
V-belt	B2261 (For CDE6240A 60HZ)
Dead Center	D115, DB1221
Oil gun	1 set
Wrench tool	1 set
Foundation bolt	1 set
Key	MS705-2 used for door of belt cover
Keys	used for door of electrical cabinet
Instruction Manual	1 set
Certificate of Conformity	1 set
Packing List	1 set
