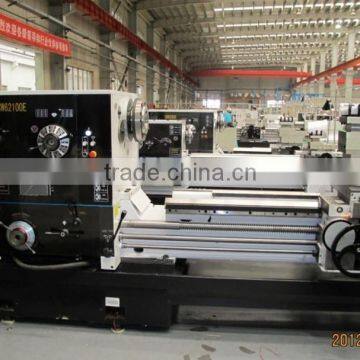

Catalogue of CW-E series Horizontal Lathe with 105/130mm Large Spindle Bore
- 1000 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 1000 | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CW6263E CW6280E CW62100E | |
| Voltage | 220V 380V 400V 415V 440V 480V 50/60Hz | Power(W) | 11/15kW | |
| Certification | CE; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CW Series Horizontal Lathe specification
Machine Features:
- Standard: spindle head: C11/D11, spindle bore diameter: Φ100/105mm.
- Optional: spindle head: D11, spindle bore diameter Φ130mm.
- Guide rail width: 550mm.
- Guide way hardness: HRC50, Depth1.5mm.
- Max load weight between 2-centers: 1000kg; with steady rest: up to 2000kg.
- Standard: Left-hand wheel is equipped;
- Right-handed wheel shall be informed specially when placing order.
- Equipped with hydraulic clutch and electrical cabinet.
- Slide board boxes with vertical and horizontal rapid shift handle.
- Special indication is required if tailstock sleeve is with a scale.
- It can machine inner circle, outer circle, and end & head surface, taper surface.
- Gap lathe can process the deformation parts.
- Function includes the drilling and reaming. Metric, inch, diametrical pitch, module thread.
- The bed is made of high-grade cast iron.
- The bed is undergoing surface quenching, the hardness can be HRC50.
- The noise can be under 83(A)
Item | CW6263E | CW6280E | CW62100E | |
Max. swing over bed | 630mm | 800mm | 1000mm | |
Max. swing over carriage | 350mm | 520mm | 720mm | |
Center distance | 750mm 1000mm 1500mm 2000mm 3000mm 4000mm 5000mm 6000mm | |||
Width of gap | 320mm | |||
Swing over gap | 800mm | 1000mm | 1230mm | |
Width of guide way | 550mm | |||
Spindle bore diameter | 100 mm | 105 mm | 130mm | |
Spindle speed | (18 speeds) 7.5~1000rpm | |||
Longitudinal feed | (64) 0.1~24.3mm/r | |||
Cross feed | (64) 0.05~12.15mm/r | |||
Rapid traverse speed | 3.8m/min | |||
Metric thread | (39)1~240mm | |||
Inch thread | (26) 14~1TPI | |||
Module thread | (53) 0.5~120mm | |||
Diametrical pitch thread | (24) 28~1 | |||
Max. travel of cross slide | 445mm | 493mm | 493mm | |
Travel of top slide | 200mm | |||
Main motor power | 11kW | |||
Rapid traverse motor power | 1.1kW | |||
Coolant pump motor power | 0.09kW | |||
Wooden box/Pallet packing | 750mm | 3940×1150×2080/3840×1100×1920 | ||
4450/3550kg | 4600/3730kg | 5000/4050kg | ||
1000mm | 3490×1150×2080/3390×1100×1920 | |||
4750/3550kg | 4950/3730kg | 5450/4050kg | ||
1500mm | 3940×1150×2080/4420×1100×1920 | |||
5250/2850kg | 5450/4030kg | 5850/4350kg | ||
2000mm | 4560×1150×2080/5200×1100×1920 | |||
Gross/Net weight | 5650/4150kg | 5850/4330kg | 6250/4560kg | |
3000mm | 5460×1150×2080/5270×1100×1920 | |||
6250/4650kg | 6450/4830kg | 6850/5150kg | ||
4000mm | 6520×1150×2080/7310×1100×1920 | |||
7150/5450kg | 7800/6100kg | 8200/6250kg | ||
5000mm | 7600×1150×2080/7350×1100×1920 | |||
7950/6250kg | 8500/6450kg | 8900/6750kg | ||
