Home > Products > Metal Plate Machine > CE Hydraulic Plate Bending Machine

CE Hydraulic Plate Bending Machine

FOB Price

US$ 7,273 - 64,804 / Set

1 Set(Min. Order)

Port Shanghai China
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shanghai, China
Brand Name	LFM	Model Number	WF67Y Series hydraulic plate bending machine
Voltage	220V/380V/415V/440V/480V 50/60Hz	Rated Power	5.5~45kW
Dimension(LWH)	Depends	Weight	Depends
Certification	CE; ISO9001:2008; GB/T19001:2008	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

hydraulic bending machine Technical Data

Characteristics

WF67Y hydraulic plate bender hydraulic/plate bending clamp/ plate bending machine has following featurers:

1.All steel welded structure,vibrating treatment of ageing for removal of internal stress with high strength and good rigidity. 2.Torsion shaft forced synchronization of mechanical limit stopper balance with high precision.

3.Integrated hydraulic transmission system, large range of speed regulation to transmission of the sliding block, stable and reliable performance.

4.Rear stopper and the sliding block have electrical adjustment for their stroke with manual fine tuning and digital indication. 5.Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with titling warp offset mechanism.

6.Multi machine combined operation is possible.

7. Digital display device(DRO) is equipped;

8. CE is approved;

9. Kinds of colors for your choice/can be Customized according to user's demand;

10. CNC types are available, too;

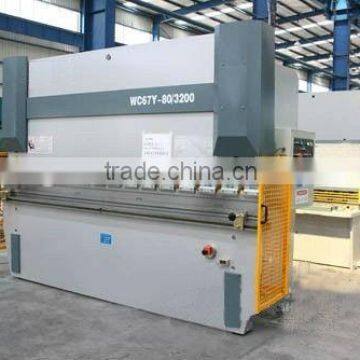

Real Photos:

Kinds of colors for your choice/can be Customized according to user's demand;

Main Technical Data

Nominal pressure	The length of the working bench	Set up the interval of the post to leave	The throat is a degree of depth	Slip one highly seals with	Slippery journeys	Motor power	Overall dimensions	Weight
KN	mm	mm	mm	mm	mm	KW	mm	Kg
630	2500	1880	250	320	100	5.5	2600×1600×2300	5000
800	3200	2600	320	380	120	7.5	3300×1700×2300	6800
1000	4000	3100	320	450	150	7.5	4100×1800×2400	8000
1250	4000	3300	320	400	150	7.5	4060×1800×2500	9000
1600	4000	3200	320	450	200	11	4000×2000×2600	13000
2000	4000	3200	320	465	200	11	4100×2100×2900	15000
2000	6000	5100	320	465	200	13	6100×2500×3000	23000
2500	4000	3100	350	460	250	18.5	4100×2200×3500	20000
3000	5000	4100	400	600	250	22	5100×2600×3500	27000
3200	5000	4300	400	560	250	22	5060×2570×3760	27000
3500	6000	5100	450	680	250	30	6100×2600×4200	33000
4000	3200	2600	350	550	300	30	3300×2700×4000	27000
4000	6500	5100	400	620	320	30	6500×2750×4300	44000
6000	6000	4820	400	630	320	37	6050×3000×4900	66000
6300	7000	6100	400	710	320	45	7050×3000×4900	82000

Factory Overview

Our Services

1, Your inquiry will be replied in 24 hours;

2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Technical Support Provide operation video for training;

5, Professional after-sales service team;

Call us at any time: +86 -15641121240/15641121140

Fax us:+86-411-84410129

FAQ

Payment Term:

30% down payment, 70% by T/T before shipment;
100% LC at sight(optional and shall be discussed before placing order);

Minimum Order Quantity:

1 Set;
≥2 sets, there will be much discounts.

Warranty:

Normally, 12 months for parts as of delivery of the machines;

Shipment:

For machine itself, by sea or train(inland countries).
For documents, by international express. eg DHL, TNT or EMS.
