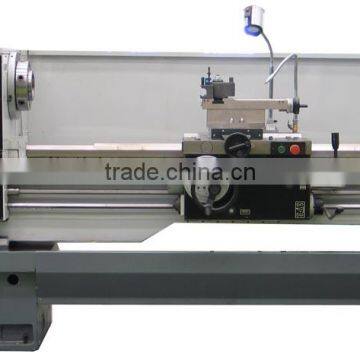

CW61140Mx1000 heavy duty manual lathe machine
- Dalian China
- T/T Credit Card PayPal
You May Like
-
Catalogue of CW62100 universal horizontal lathe
-
CDL6251 High-speed Bench Lathe for Light Machining
-
Large Spindle Bore 130mm Universal Horizontal Lathe with GAP Hot-sale CW6280E
-
CDS6276B/Cx2000 CE universal horizontal lathe price
-
CW62100Ex3000 Universal Horizontal GAP Lathe
-
CDE6240 Series conventional horizontal lathe at lower price
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 400mm~760mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CW61140Mx1000 heavy duty horizontal lathe | |
| Voltage | 220V,380V,415V,440V,480 | Power(W) | 22kW | |
| Certification | CE; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Compound sliding plate is provided, so parts in taper can be turned;
Standard spindle head: A2-15, spindle bore: 130mm
Headstock contains hydraulic clutch and hydraulic brake
Guide rail width:750mm
Largest load capacity between 2 core clamper (with steady rest): up to 5000kg
Order notice must be specified with: condition of installed taper imitated shape device
Guide rail hardness:HRC50, Depth1.5mm
Only provide left-hand wheel
Vertical and horizontal rapid shift handle for slide board boxes
Tailstock sleeve with a dividing rule should be specially annotated.
Specifications | Unit | Parameter |
Swing over Bed | mm | 1400 |
Max length of work piece | mm | 1000 |
Swing in Gap | mm | 1800 |
Width of Gap | mm | 600 |
Width of Guide way | mm | 755 |
No. of Spindle Speed Ranges |
| 21 |
Spindle Speed | mm/min | 3.15~315 |
Spindle Bore | mm | 130 |
Spindle Nose |
| D13 |
Longitudinal Feed | mm/rev | 0.1~12 |
Cross Feed | mm/rev | 0.05~6 |
Metric Thread | mm | 1~120 |
Module Thread | mm | 0.5~60 |
Whitworth Thread | TPI | 28~1/4 |
Diametrical Thread | DP | 1/2~56 |
Max. Travel of Top Slide | mm | 300 |
Main Motor Power | kW | 22 |
Cross weight | kg | |
Net weight | kg | |
Bottom size of metal packing | cm |
