Small Universal Lathe with CE

FOB Price

US$ 4,050 - 6,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Manual
Max. Swing Diameter	410mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	CDS6232 CDS6236 CDL6241 CDS6251
Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz	Power(W)	3.3kW
Certification	CE Certificate; ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

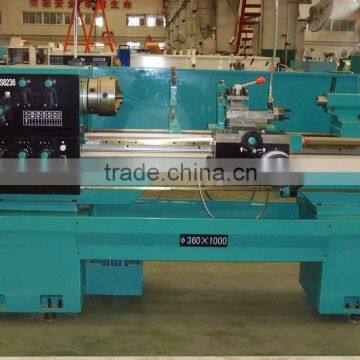

Small Universal Lathe with CE

CE CERTIFICATE

Item	CDS6232	CDS6236	CDS6241
specification
Max swing over bed	320mm	360mm	410mm
Max swing over carriage	180mm	220mm	270mm
Center distance	500mm 750mm 1000mm
Max swing in gap	520mm	560mm	610mm
Width of bed	280mm
Head stock
Spindle nose	D6
Spindle bore	52mm
Taper of spindle bore	M6
Spindle speeds	59~2100 rpm(1 2speeds)
Thread
Range of whit worth thread	56~2TPI(52)
Range of metric thread	0.4~14mm(40)
Range of module thread	0.2~3.5mm(46)
Range of Di metrical pitch thread	112~6DP(33)
Tailstock
Taper of tail quill	M4
Travel of tail quill	125mm
Diameter of tail quill	50mm
Motor
Power of main motor	3.3/2.2kW
Power of coolant motor	60W
Net weight	980kg 1030kg 1080kg	1030kg 1080kg 1130kg	1150kg 1100kg 1150kg
Gross weight	1330kg 1430kg 1530kg	1380kg 1480kg 1580lkg	1400kg 1500kg 1600kg
Overall dimensions(L×W×H)	1610mm×935mm×1200mm(500mm)
	1860mm×935mm×1200mm(750mm)
	2110mm×935mm×1200mm(1000mm)
Packing dimensions(L×W×H) wooden case/metal pallet	1830mm×1040mm×1500mm/1700mm×1000mm×1300mm(500mm)
	2080mm×1040mm×1500mm/1950mm×1000mm×1300mm(750mm)
	2330mm×1040mm×1500mm/2200mm×1000mm×1300mm(1000mm)
