CW62100Ex5000 manual horizontal gap lathe machine
- Dalian China
- T/T Credit Card PayPal
You May Like
-
CW61140Mx1000 heavy duty manual lathe machine
-
Catalogue of CW62100 universal horizontal lathe
-
CDL6251 High-speed Bench Lathe for Light Machining
-
Large Spindle Bore 130mm Universal Horizontal Lathe with GAP Hot-sale CW6280E
-
CDS6276B/Cx2000 CE universal horizontal lathe price
-
CW62100Ex3000 Universal Horizontal GAP Lathe
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 1000mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CW62100Ex5000 gap lathe machine | |
| Voltage | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz | Power(W) | 11/15kW; | |
| Dimension(L*W*H) | 7350x1100x1920mm | Weight | 6750kgs | |
| Certification | CE; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

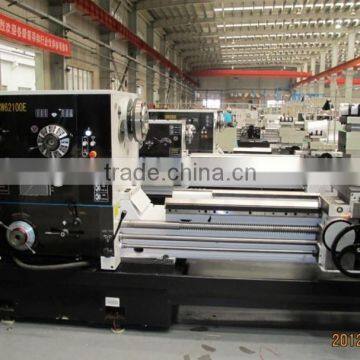

CW62100Ex5000 manual horizontal gap lathe machine
Such manual horizontal gap lathe machine has following features:
- Standard: spindle head: C11/D11, spindle bore diameter: Φ100/105mm.
- Optional: spindle head: D11, spindle bore diameter Φ130mm.
- Guide rail width: 550mm.
- Guide way hardness: HRC50, Depth1.5mm.
- Max load weight between 2-centers: 1000kg; with steady rest: up to 2000kg.
- Standard: Left-hand wheel is equipped;
- Right-handed wheel shall be informed specially when placing order.
- Equipped with hydraulic clutch and electrical cabinet.
- Slide board boxes with vertical and horizontal rapid shift handle.
- Special indication is required if tailstock sleeve is with a scale.
CW62100Ex5000 manual horizontal gap lathe machine's technical information
Specifications | Unit | Parameter |
Max. swing over bed | mm | 1000 |
Max. swing over carriage | mm | 720 |
Center distance | mm | 5000 |
Width of gap | mm | 320 |
Swing over gap | mm | 1230 |
Width of guide way | mm | 550 |
Spindle bore diameter | mm | 105/130 opt |
spindle nose |
| C11/D11 opt |
Spindle speed | rpm | (18 speeds) 7.5~1000 |
Longitudinal feed | mm/r | (64) 0.1~24.3 |
Cross feed | mm/r | (64) 0.05~12.15 |
Rapid traverse speed | m/min | 3.8 |
Metric thread | mm | (39)1~240 |
Inch thread | TPI | (26) 14~1 |
Module thread | mm | (53) 0.5~120 |
Diametrical pitch thread | D.P | (24) 28~1 |
Max. travel of cross slide | mm | 493 |
Travel of top slide | mm | 200 |
Main motor power | kW | 11 |
Rapid traverse motor power | kW | 1.1 |
Coolant pump motor power | kW | 0.09 |
Wooden box/Pallet packing | mm | 7600×1150×2080 7350×1100×1920 |
Gross/Net weight | kg | 8900/6750 |
Name | Size(mm) |
3-jaw chuck | Φ400(For CW62100E) |
4-jaw chuck | Φ630(For CW62100E) |
Steady rest | Φ150~Φ400(For CW62100E) |
Follow rest | Φ20~Φ160(For CW62100E) |
Dead center | 2 sets |
Reducing sleeve | 1 set |
Wrench Tool | 1 set |
Oil gun | 1 set |
Instruction Manual | 1 set |
Certificate of Conformity | 1 set |
Packing List | 1 set |
