CDE6240 Series conventional horizontal lathe at lower price

FOB Price

USD $5,253 - $7,598 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Manual
Max. Swing Diameter	400mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	CDE6240A(400x750~3000mm) horizontal lathe
Voltage	220V 380V 400V 415V 440V 480V	Power(W)	5.5/7.5kW
Dimension(LWH)	depends	Weight	depends
Certification	ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

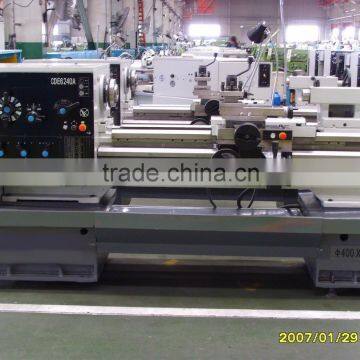

CDE6240 conventional horizontal lathe

Main Features

Such conventional horizontal lathe has following features:

Main Technical Data

Specifications	Unit	Parameter
Max. swing over bed	mm	Φ400
Max. swing over carriage	mm	Φ220
Max. length of work piece	mm	750/1000/1500/2000/3000
Max. swing over gap	mm	Φ700
Width of guide way		394
Dia. of spindle bore	mm	Φ52
Taper of center sleeve		Morse No.6
Spindle speed	rpm	11~1400/22
Longitudinal feed	mm/rev	0.035~2.842
Cross feed	mm/rev	0.009~0.804
Metric thread		0.5~240(66)
Whitemouth thread		80~1/4(49)tpi
Module thread	mm	0.25~120(57)
Diametrical pitch thread	mm	160~7~16DP(50)
Section of tool shank	mm	25×25
Travel of top slide	mm	150
Max. travel of cross slide	mm	348
Pitch of longitudinal lead screw	mm	12
Travel of tailstock center sleeve	mm	150
Diameter of tailstock center sleeve	mm	Φ75
Taper of tailstock center sleeve	Morse	No.5
Main motor power	kW	7.5(50Hz)/5.5 (60Hz)
Wooden case	mm	270x115x190 295x115x190 345x115x190 395x115x190 495x115x190
Gross/net weight	kg	2670/1970 2715/2020 2805/2070 2895/2180 3095/2380
