Home > Products > Horizontal Universal Lathes > Catalogue of CW62100 universal horizontal lathe

Catalogue of CW62100 universal horizontal lathe

FOB Price

USD $17,500 - $32,230 / Set

1 Set(Min. Order)

Port Dalian China
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Manual
Max. Swing Diameter	1000mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	CW62100 horizontal lathe
Voltage	220V,380V,415V,440V,480V;	Power(W)	7.5/11/15kW
Dimension(LWH)	Depends	Weight	3500~7750kgs
Certification	ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

CW62100E universal horizontal lathe Technical Data

Characteristics

CW62100 universal horizontal lath can machine inner circle, outer circle, and end & head surface, taper surface. Gap lathe can process the deformation parts. Function includes the drilling and reaming. Metric, inch, diametrical pitch, module thread.The bed is made of high-grade cast iron. The bed is undergoing surface quenching, the hardness can be HRC50.The noise can be under 83(A)

Main Technical Data

CW62100 universal horizontal lathe

Specifications	Unit	Parameter
Max. swing over bed	mm	1000
Max. swing over carriage	mm	720
Center distance	mm	750/1000/1500/2000/3000/4000/5000/6000
Width of gap	mm	320
Swing over gap	mm	1230
Width of guide way	mm	550
Spindle bore diameter	mm	105/130 opt
spindle nose		C11/D11 opt
Spindle speed	rpm	(18 speeds) 7.5~1000
Longitudinal feed	mm/r	(64) 0.1~24.3
Cross feed	mm/r	(64) 0.05~12.15
Rapid traverse speed	m/min	3.8
Metric thread	mm	(39)1~240
Inch thread	TPI	(26) 14~1
Module thread	mm	(53) 0.5~120
Diametrical pitch thread	D.P	(24) 28~1
Max. travel of cross slide	mm	493
Travel of top slide	mm	200
Main motor power	kW	11
Rapid traverse motor power	kW	1.1
Coolant pump motor power	kW	0.09
Wooden box/Pallet packing	mm
Gross/Net weight	kg

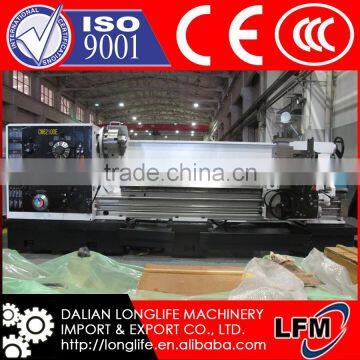

Real Photos:

Our Services

1, Your inquiry will be replied in 24 hours;

2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Technical Support Provide operation video for training;

5, Professional after-sales service team;

Call us at any time: +86 -15641121240/15641121140

Fax us:+86-411-84410129

FAQ

Payment Term:

30% down payment, 70% by T/T before shipment;
100% LC at sight(optional and shall be discussed before placing order);

Minimum Order Quantity:

1 Set;
≥2 sets, there will be much discounts.

Warranty:

Normally, 12 months for parts as of delivery of the machines;

Shipment:

For machine itself, by sea or train(inland countries).
For documents, by international express. eg DHL, TNT or EMS.
