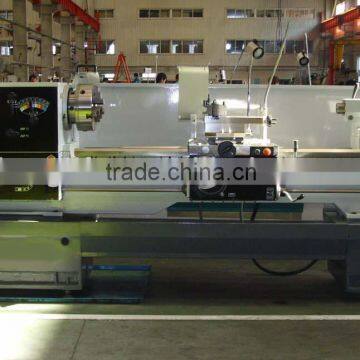

CE Certified Manual Lathe Hot-sale CDS6250
- 1000 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 760mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CDS6240/50/56/66/76B | |
| Voltage | 220V 380V 400V 415V 440V 480V | Power(W) | 7.5/11kW | |
| Certification | CE; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Lathe Data Sheet
CE certificate of TUV Rheinland,Germany & CQC,China
It can machine inner circle, outer circle, and end and head surface, taper surface. Gap lathe can process the deformation parts. Function is including the drilling and reaming.
Metric, inch, diametrical pitch, module thread
Item | CDS6240/50/56/66/76B | CDS6240/50/56/66/76C | |||
Max. swing over bed | 400/500/560/660/760mm | ||||
Max. swing over carriage | 230/290/350/440/540mm | ||||
Max. swing over gap | 700/760/780/870/965mm | ||||
Width of gap | 250mm | ||||
Max. length of work piece | 1000/1500/2000/3000mm | ||||
Width of guide way | 394mm | ||||
Spindle nose | D8 | ||||
Spindle speed | 26~2000rpm | 23~1800rpm | 26~1700rpm | 23~1530rpm | |
Dia. of spindle bore | 82mm | 105mm | |||
Taper of spindle bore | 90/1:20 | 110/1:20 | |||
Longitudinal feed | 0.044-1.48mm/rev | ||||
Cross feed | 0.022-0.74mm/rev | ||||
Metric thread | 0.35-80mm(53 or 77) | ||||
Inch thread | 7/16-80tpi(47) | ||||
Module thread | 0.2-40mm(45 or 66) | ||||
Diametrical pitch thread | 7/8-160 DP (42) | ||||
Max. travel of cross slide | 348/348/348/355/355mm | ||||
Travel of top slide | 150mm | ||||
Travel of tailstock quill | 150mm | ||||
Diameter of tailstock quill | 75mm | ||||
Taper bore of tailstock quill | M5 | ||||
Main motor power | 10HP(7.5kW)/15HP(11kW.OPTIONAL) | ||||
Packing & Weight | 1000mm | Wooden case(mm):2850×1150×1900 Metal pallet(mm):2780×1120×1800 | |||
N.M.(kgs):2100/2150/2200G.W.(kgs):2670/2810/2860 | |||||
1500mm | Wooden case(mm):3350×1150×1900 Metal pallet(mm):3280×1120×1800 | ||||
N.M.(kgs):2150/2200/2250 G.W.(kgs):2950/3000/3050 | |||||
2000mm | Wooden case(mm):3850×1150×1900 Metal pallet(mm):3780×1120×1800 | ||||
N.M.(kgs):2260/2310/2360/2600 G.W.(kgs):3170/3220/3270/3800 | |||||
3000mm | Wooden case(mm):4850×1150×1900 Metal pallet(mm):4780×1120×1800 | ||||
N.M.(kgs):3030/3080/3150/2800 G.W.(kgs):4010/4060/4110/4250 | |||||
