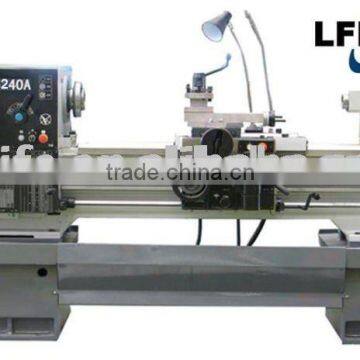

Spindle Hole Manual Gap Lathe
- 1000 Set / Sets per Month
- Dalian China;
- T/T Credit Card PayPal
You May Like
-
CDE6266x2200 economic conventional metal lathe machine
-
CDL6241 Light-duty Economic Metal Horizontal Lathe Machine
-
CE Certified Conventional Horizontal Lathe
-
CDL6236x750 small high speed universal metal lathe machine for repairs
-
CDE6250 Series Economic Conventional Horizontal Lathe
-
High-precision Manual Gap Lathe
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 660mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CDE6240 CDE6250 CDE6266 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Universal Lathe Specification
The CDE series lathe can process steel, cast iron, non-metal material.
The precision can reach up to IT7 level; the surface roughness can be up to 1.6 grade.
It can machine inner circle, outer circle, and end and head surface, taper surface. Gap lathe can process the deformation parts. Function is including the drilling and reaming.Metric, inch, diametrical pitch, module thread The bed is made of high-grade cast iron, the guide way is super audio frequency quenching.
Item | CDE6240A | CDE6250A | CDE6266A | |
Max. swing over bed | 400mm | 500mm | 660mm | |
Max. swing over carriage | 220mm | 290mm | 430mm | |
Max. swing over gap | 700mm | 760mm | 910mm | |
Width of guide way | 394mm | |||
Dia. of spindle bore | 52mm | |||
Taper of center sleeve | Morse No.6 | |||
Spindle speed | 11~1400rpm/22speeds | |||
Longitudinal feed | 0.035~2.842mm/rev | |||
Cross feed | 0.009~0.804mm/rev | |||
Metric thread | 0.5~240(66) | |||
Inch thread | 80~1/4(49)tpi | |||
Module thread | 0.25~120(57)mm | |||
Diametrical pitch thread | 160~7~16DP(50)mm | |||
Section of tool shank | 25×25 | |||
Travel of top slide | 150mm | |||
Max. travel of cross slide | 348mm | 348mm | 393mm | |
Pitch of longitudinal lead screw | 12mm | |||
Travel of tailstock center sleeve | 150mm | |||
Diameter of tailstock center sleeve | 75mm | |||
Taper of tailstock center sleeve | Morse No.5 | |||
Main motor power | 7.5kW(50Hz)/5.5kW(60Hz) | |||
Wooden case/Steel pallet Gross/net weight(kg) | 750mm | 2740×1150×1900/2580×1120×1610mm | ||
2770/2070 | 2820/2120 | 2928/2228 | ||
1000mm | 2990×1150×1900/2800×1120×1610mm | |||
2815/2120 | 2865/2170 | 2973/2278 | ||
1500mm | 3490×1150×1900/3300×1120×1610mm | |||
3905/2170 | 2955/2220 | 3063/2328 | ||
2000mm | 3990×1150×1900/3800×1120×1610mm | |||
2995/2280 | 3045/2330 | 3153/2438 | ||
3000mm | 4990×1150×1900/ 4800×1120×1610mm | |||
| 3245/2330 | 3493/2798 | ||
