CDE6266x2200 economic conventional metal lathe machine

FOB Price

USD $10,300 - $10,558 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Manual
Max. Swing Diameter	660mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	CDE6266Ax2200 conventional metal lathe machine
Voltage	Customer's Requirement	Power(W)	5.5kW/7.5kW
Dimension(LWH)	4800x1120x1610mm	Weight	2700kgs
Certification	ISO9001:2008; GB/T19001:2008;	After-sales Service Provided	Engineers available to service machinery overseas

CDE6266x2200 conventional metal lathe machine

Main Usage

Such conventional metal gap lathe machine has following usages:

1. It can machine inner circle, outer circle, and end and head surface, taper surface;

2. Gap lathe can process the deformation parts;

3. Function is including the drilling and reaming;

4. Threads cutting: Metric, inch, diametrical pitch, module thread;

Main Features

Such conventional metal gap lathe machine has following features:

1. the CDE series lathe can process Steel, cast iron, non-metal material;

2. the precision can reach up to IT7 level;

3. the surface roughness can be up to 1.6 grade;

4. the bed is made of high-grade cast iron,

5. the guide way is super audio frequency quenching.

Main Technical Data

Specifications	Unit	Parameter
Max. swing over bed	mm	660
Max. swing over carriage	mm	430
Max. swing over gap	mm	910
Width of guide way	mm	394
Dia. of spindle bore	mm	52
Distance between centers	mm	3000
Taper of center sleeve		Morse No.6
Spindle speed	rpm	11~1400/22speeds
Longitudinal feed	mm/rev	0.035~2.842
Cross feed	mm/rev	0.009~0.804
Metric thread	mm	0.5~240(66)
Inch thread	tpi	80~1/4(49)
Module thread	mm	0.25~120(57)
Diametrical pitch thread	DP	160-7-16 (50)
Section of tool shank	mm	25×25
Travel of top slide	mm	150
Max. travel of cross slide	mm	393
Pitch of longitudinal lead screw	mm	12
Travel of tailstock center sleeve	mm	150
Diameter of tailstock center sleeve	mm	75
Taper of tailstock center sleeve	Morse	Morse No.5
Main motor power	kW	7.5kW(50Hz) 5.5kW(60Hz)
Wooden case/Steel pallet	mm	4990×1150×1900/ 4800×1120×1610
Gross/net weight	kg	3393/2698

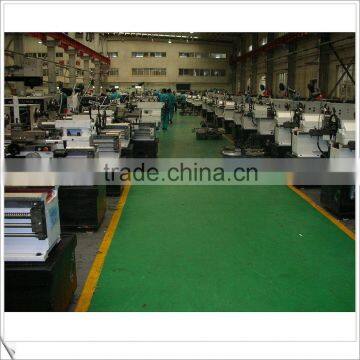

Factory Overview
