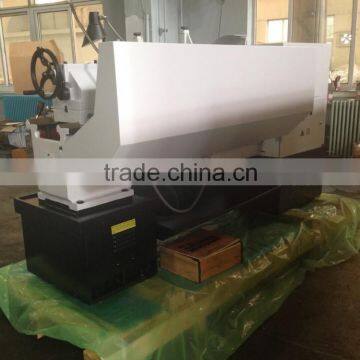

CDE Series Universal Horizontal Lathe without CE
- Dalian China
- T/T Credit Card PayPal
You May Like
-
Lathe/Machine Tool/ Conventional Lathe /Engine Lathe/Universal Lathe/Metal Lathe
-
CDS6276B/C CE universal horizontal gap lathe machine
-
CDL6251x1000 high speed bench lathe machine for light machining
-
CW-C Series horizontal gap lathe machine
-
52mm Spindle Bore Universal Lathe with GAP
-
CDL6251x750 high speed bench lathe machine
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Semi-Automatic | |
| Max. Swing Diameter | 660mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CDE6240A CDE6250A CDE6266A | |
| Voltage | 220V 380V 400V 415V 440V 480V, 50/60Hz | Power(W) | 5.5kW/7.5kW | |
| Certification | ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CDE Lathe Machine Parameter
For detailed information, to: export(at)
The CDE series lathe can process Steel, cast iron, non-metal material
The precision can reach up to IT7 level; the surface roughness can be up to 1.6 grade
It can machine inner circle, outer circle, and end and head surface, taper surface. Gap lathe can process the deformation parts. Function is including the drilling and reaming.Metric, inch, diametrical pitch, module thread The bed is made of high-grade cast iron, the guide way is super audio frequency quenching.
Item | CDE6240A | CDE6250A | CDE6266A | |
Max. swing over bed | 400mm | 500mm | 660mm | |
Max. swing over carriage | 220mm | 290mm | 430mm | |
Max. swing over gap | 700mm | 760mm | 910mm | |
Width of guide way | 394mm | |||
Dia. of spindle bore | 52mm | |||
Taper of center sleeve | Morse No.6 | |||
Spindle speed | 11-1400rpm/22speeds | |||
Longitudinal feed | 0.035-2.842mm/rev | |||
Cross feed | 0.009-0.804mm/rev | |||
Metric thread | 0.5-240(66) | |||
Whitemouth thread | 80-1/4(49)tpi | |||
Module thread | 0.25-120(57)mm | |||
Diametrical pitch thread | 160-7-16DP(50)mm | |||
Section of tool shank | 25×25 | |||
Travel of top slide | 150mm | |||
Max. travel of cross slide | 348mm | 348mm | 393mm | |
Pitch of longitudinal lead screw | 12mm | |||
Travel of tailstock center sleeve | 150mm | |||
Diameter of tailstock center sleeve | 75mm | |||
Taper of tailstock center sleeve | Morse No.5 | |||
Main motor power | 7.5kW(50Hz)/5.5kW(60Hz) | |||
Wooden case/Steel pallet Gross/net weight(kg) | 750mm | 2740×1150×1900/2580×1120×1610mm | ||
2770/2070 | 2820/2120 | 2928/2228 | ||
1000mm | 2990×1150×1900/2800×1120×1610mm | |||
2815/2120 | 2865/2170 | 2973/2278 | ||
1500mm | 3490×1150×1900/3300×1120×1610mm | |||
3905/2170 | 2955/2220 | 3063/2328 | ||
2000mm | 3990×1150×1900/3800×1120×1610mm | |||
2995/2280 | 3045/2330 | 3153/2438 | ||
3000mm | 4990×1150×1900/4800×1120×1610mm | |||
| 3245/2330 | 3493/2798 | ||
