CW6280Ex2000 conventional horizontal lathe machine
- 100 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
You May Like
-
CW6280Ex750 universal horizontal lathe machine
-
105/130mm Large Spindle Bore Horizontal GAP Lathe Hot-sale CW6280E
-
Large Spindle Manual Horizontal Lathe Machine Hot-sale CW6280E
-
CDL6236x1500 china high speed small turning lathe
-
CDL6241x1500 Light duty high speed universal metal lathe machine
-
CDL6246 High-speed Bench Lathe Espeically for Ship Repair
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 800mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CW6280Ex2000 horizontal lathe machine | |
| Voltage | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz | Power(W) | 11/15kW | |
| Dimension(L*W*H) | 4480x1100x1800mm | Weight | 4330kgs | |
| Certification | ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

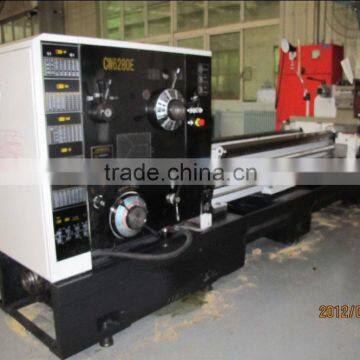

CW6280x2000 conventional lathe machine
l Standard: spindle head: C11/D11, spindle bore diameter: Φ100/105mm.
l Optional: spindle head: D11, spindle bore diameter Φ130mm.
l Guide rail width: 550mm.
l Guide way hardness: HRC50, Depth1.5mm.
l Max load weight between 2-centers: 1000kg; with steady rest: up to 2000kg.
l Standard: Left-hand wheel is equipped;
Right-handed wheel shall be informed specially when placing order.
l Equipped with hydraulic clutch and electrical cabinet.
l Slide board boxes with vertical and horizontal rapid shift handle.
l Special indication is required if tailstock sleeve is with a scale.
Specifications | Unit | Parameter |
Max. swing over bed | mm | 800 |
Max. swing over carriage | mm | 520 |
Center distance | mm | 2000 |
Width of gap | mm | 320 |
Swing over gap | mm | 1000 |
Width of guide way | mm | 550 |
Spindle bore diameter | mm | 105/130 (opt) |
spindle nose |
| C11/D11 (opt) |
Spindle speed | rpm | (18 speeds) 7.5~1000 |
Longitudinal feed | mm/r | (64) 0.1~24.3 |
Cross feed | mm/r | (64) 0.05~12.15 |
Rapid traverse speed | m/min | 3.8 |
Metric thread | mm | (39)1~240 |
Inch thread | TPI | (26) 14~1 |
Module thread | mm | (53) 0.5~120 |
Diametrical pitch thread | D.P | (24) 28~1 |
Max. travel of cross slide | mm | 493 |
Travel of top slide | mm | 200 |
Main motor power | kW | 11 |
Rapid traverse motor power | kW | 1.1 |
Coolant pump motor power | kW | 0.09 |
Wooden box Pallet packing | mm | 4760x1150x1890 4480x1100x1800 |
Gross/Net weight | kg | 5800/4330 |
Name | Size(mm) |
3-jaw chuck | Φ400 (For CW6280E) |
4-jaw chuck | Φ630 (For CW6280E) |
Dead center | 2 sets |
Reducing sleeve | 1 set |
Wrench Tool | 1 set |
Oil gun | 1 set |
Foundationbolt | Yes |
Instruction Manual | 1 set |
Certificate of Conformity | 1 set |
Packing List | 1 set |
Manual for Spare Parts | 1 set |
kinds of colors for your choice/can be customized
