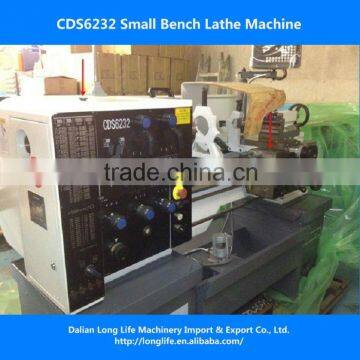

CDS6232 CE small manual bench lathe machine price

FOB Price

US$ 4,050 - 5,050 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Manual
Max. Swing Diameter	320mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	CDS6232x750~1000mm
Voltage	220V 380V 400V 415V 440V 480V	Power(W)	3.3/2.2kW
Dimension(LWH)	1860x935x1200mm	Weight	1030kgs
Certification	CE Certificate; ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

CDS6232 manual bench lathe machine technical data

Characters

CE certified-CE Certificate;
Standard spindle head: C6,
Optional spindle head: D6, spindle bore:52 mm
Guide rail width:280mm
High-frequency quenching Guide rail hardness: HRC50, Depth 1.5mm
Maximum load capacity between two centers:200kg
Standard: the lathe is equipped with left-handed wheel slip board boxes,
Right-handed wheel can also be provided, but shall be informed specially when placing order;
Headstock in the clutch, three boxes all use self inside lubrication;
3-jaw chuck and 4-jaw chuck: Direct coupled type;
Standard: the lathe is equipped with mechanical clutch and mechanical braking
Main motor is double - speed motor, unable to offer dual voltage;
Available voltage frequency: 50HZ: 220V, 380V, 400V, 415V, 420V, 440V, 600V
DRO: optional;

Main Technical Data

Specifications	Unit	Parameter
Max swing over bed	mm	320
Max swing over carriage	mm	180
Center distance	mm	500/750/1000
Max swing in gap	mm	520
Width of bed	mm	280
Range of pitch thread	TPI	56~2 (52)
Range of metric thread		0.4~14(40)
Range of module thread		0.2~3.5(46)
Range of Whitworth thread	DP	6~112 (33)
Taper of tail quill		M4
Travel of tail quill	mm	125
Diameter of tail quill	mm	50
Power of main motor	kW	3.3/2.2
Power of coolant motor	W	60
Net weight	kg	1030
Gross weight	kg	1430
Overall dimensions(L×W×H)	mm	1860×935×1200
Packing dimensions(L×W×H) Wooden case/metal pallet	mm	2080 ×1040 ×1500 1950 ×1000 ×1300
